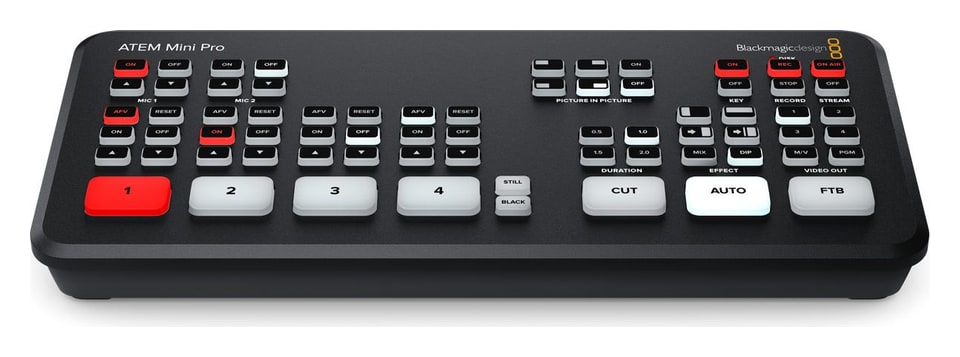

Blackmagic Design ATEM Mini

Standards

HD Video Input Standards : 720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60

HD Video Output Standards : 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

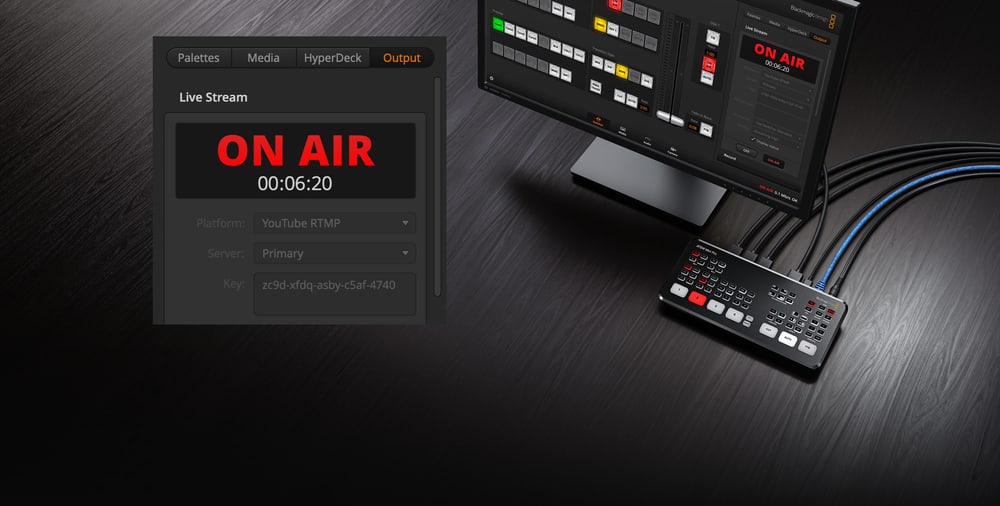

Video Streaming Standards :1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

Ultra HD Video Standards : None

Video Sampling : 4:2:2 YUV

Color Precision : 10-bit

Color Space : Rec 709

HDMI Input Resolutions from Computers : 1280 x 720p 50Hz, 59.94Hz and 60Hz
1920 x 1080p 23.98, 24, 25, 29.97,30, 50, 59.94 and 60Hz
1920 x1080i 50 and 59.94Hz 60Hz

Colorspace Conversion : Hardware based real time.

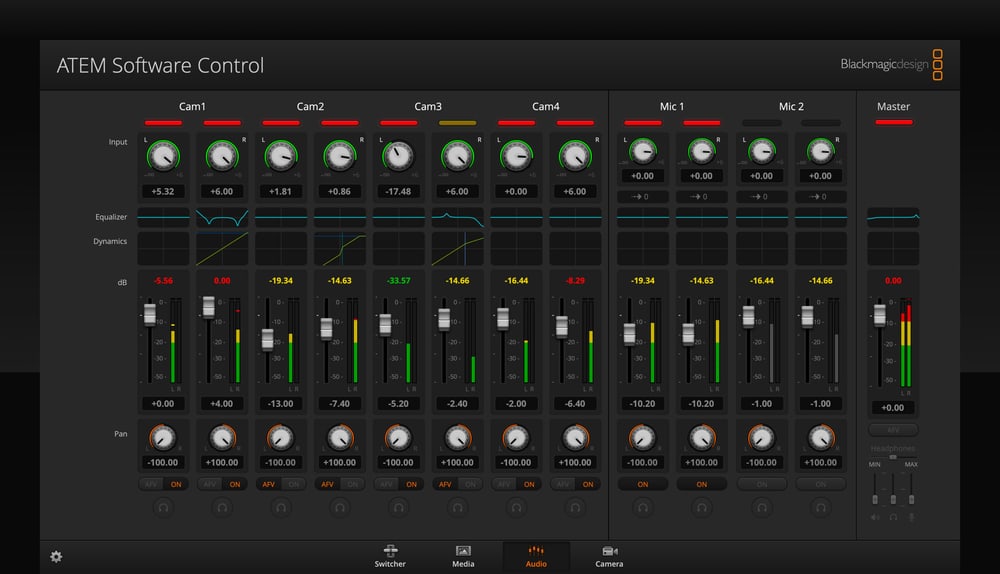

Audio Mixer : 6 input x 2 channel mixer.
Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.
Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.

Product Specifics

Upstream Keyers :  1

Downstream Keyers : 1

Advanced Chroma Keyers : 1

Linear/Luma Keyers : 2

Transition Keyer :DVE only.

Total Number of Layers :5

Pattern Generators :1

Color Generators :2

DVE with Borders and Drop Shadow :1

Interface :Minimum monitor resolution of 1366 x 768.

Media Player

Media Players : 1

Channels : Fill and key for each Media Player.

Media Pool Still Image Capacity : 20 with fill and key.

Media Pool Still Image Format : PNG, TGA, BMP, GIF, JPEG and TIFF.

Control

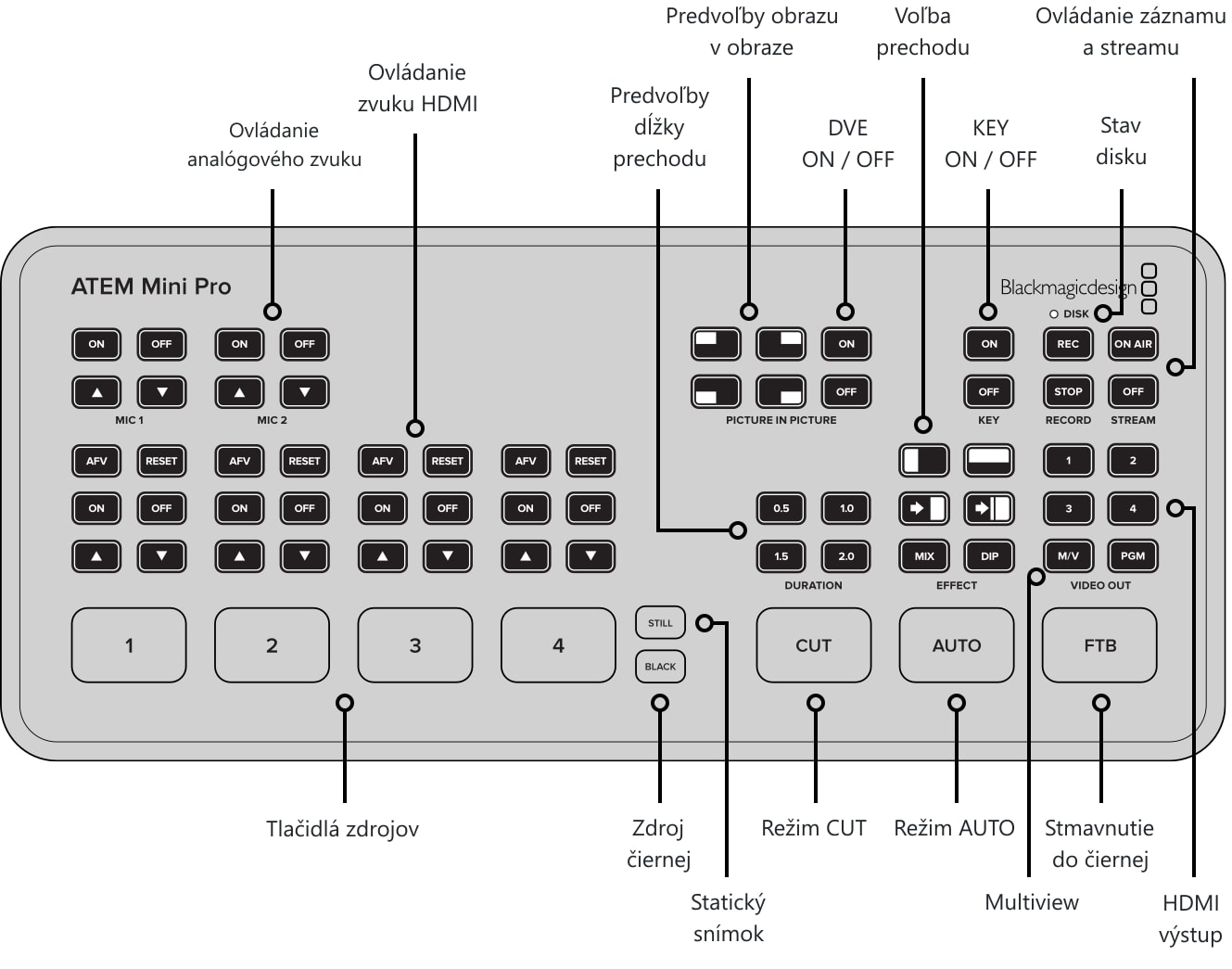

Control Panel : Built in control panel. Software control panel included. Supports optional hardware panel.

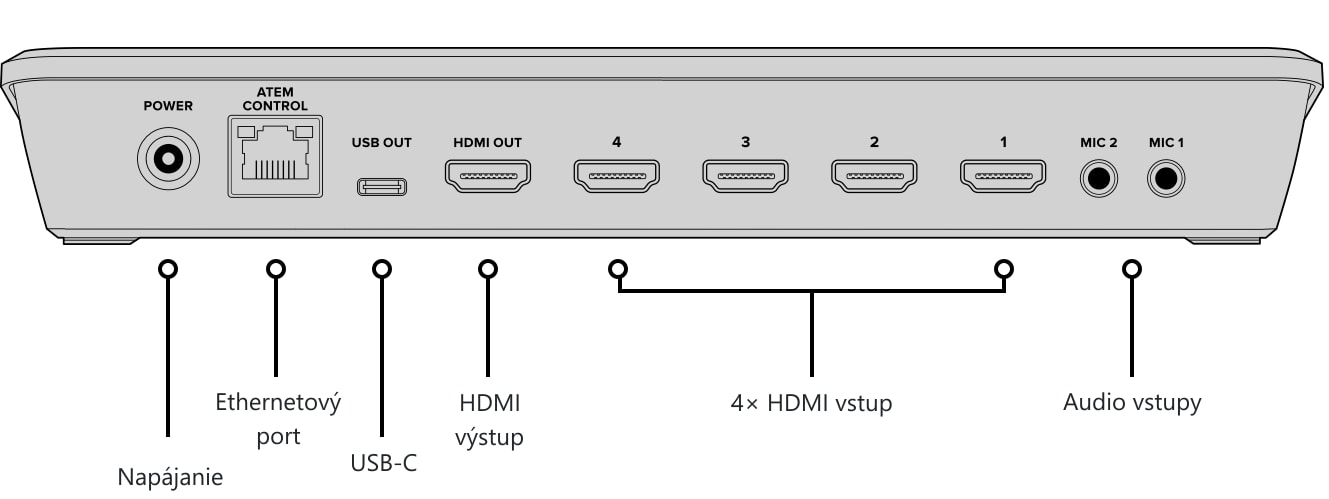

Control Panel Connection :Ethernet supports 10/100 BaseT. Allows direct connection between panel and chassis, or via network. Also used for updating the software. ATEM Mini supports direct USB-C connection.

Control Panel Compatibilty :Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel and ATEM 2 M/E Broadcast Panel.

Control Panel Included :

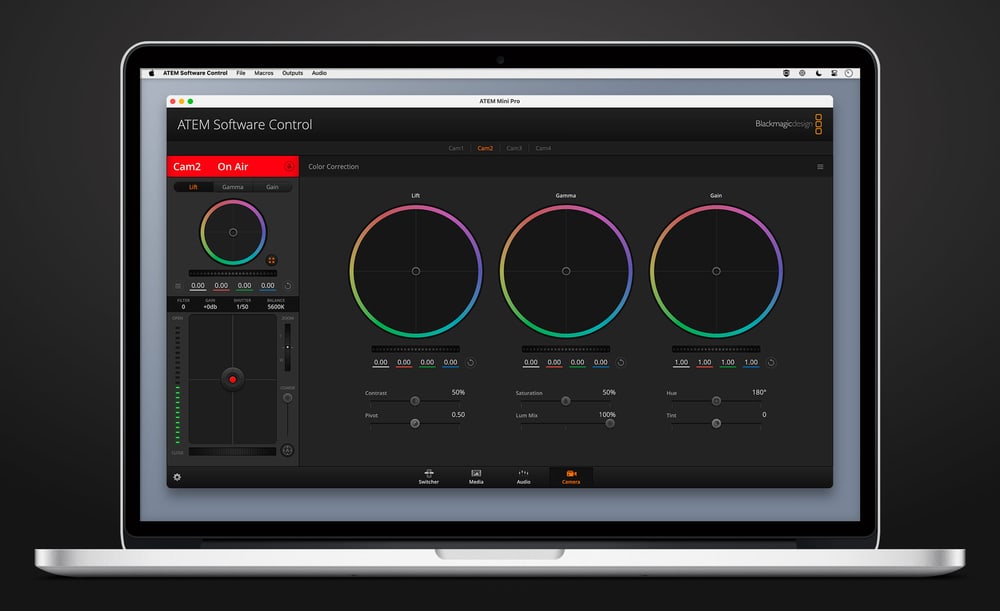

ATEM Software Control Panel included free for Mac 10.13 High Sierra, Mac 10.14 Mojave or later and Windows 10.

Physical Specifications

Software

Software Updates : Using USB or Ethernet connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility.

Configuration : Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.

Operating Systems

Mac 10.14 Mojave, / Mac 10.15 Catalina or later / Windows 10, 64-bit.

Power Requirements

Power Supply : 1 x External 12V power supply.

Power Usage : 36W
