SWIT FLOW2000 SDI/HDMI bezdrôtový set

SWIT FLOW2000 je kompletný set na 5.1-5.9GHz 3G-SDI a HDMI bezdrôtový prenos obrazu a zvuku až na vzdialenosť 600 metrov.

Viac informácií

ŠPECIÁLNA AKCIA: -15% končí za: 6d: 23h: 09m
3 598.8 € 3 058.98 € s DPH 2 549.15 € bez DPH
Bratislava 5 ks, Centrálny sklad 2 ks
Doprava zdarma pri nákupe tohto produktu
Kód tovaru:
Pridať do porovnania
Popis produktu

Popis produktu

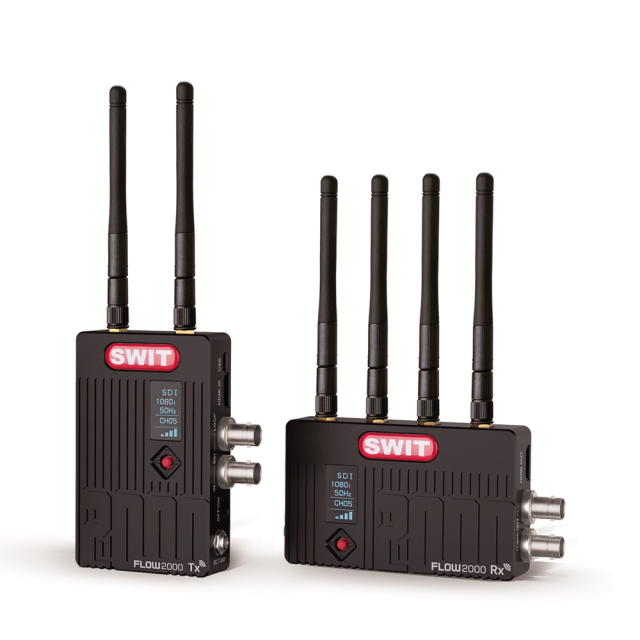

SWIT FLOW2000 je kompletný set na 5.1-5.9GHz 3G-SDI a HDMI bezdrôtový prenos obrazu a zvuku až na vzdialenosť 600 metrov.

FLOW2000 SDI&HDMI 2000ft/600m Wireless System

  • KUWI 5.1-5.9GHz Wireless Technology
  • DFS Comply
  • 3GSDI & HDMI, with 3GSDI loop out
  • 2000ft/600m (Line-of-Sight) distance
  • Strong Wall-Cross Performance
  • 2-ch SDI/HDMI audio transmission
  • OLED info and channel switching
  • Support 3-4 pairs working in one location
  • Multicast - 1 transmitter to Max 4 receivers
  • Wireless protocol & content double encryption
  • Reclock and accurate color reproduction

KUWI Wireless Technology

SDI&HDMI 2000ft / 600m (LOS)

FLOW2000 wireless system is based on SWIT latest KUWI wireless technology, 5.1-5.9GHz license free bands, DFS comply, supports 3G/HD-SDI and HDMI (Max 1080p60) to transmit 200 feet (600 meters) Line-of-Sight distance. The system is pure hardware connection, plug and play, which is widely used in director monitoring, drone, ropeway camera, steadicam etc.

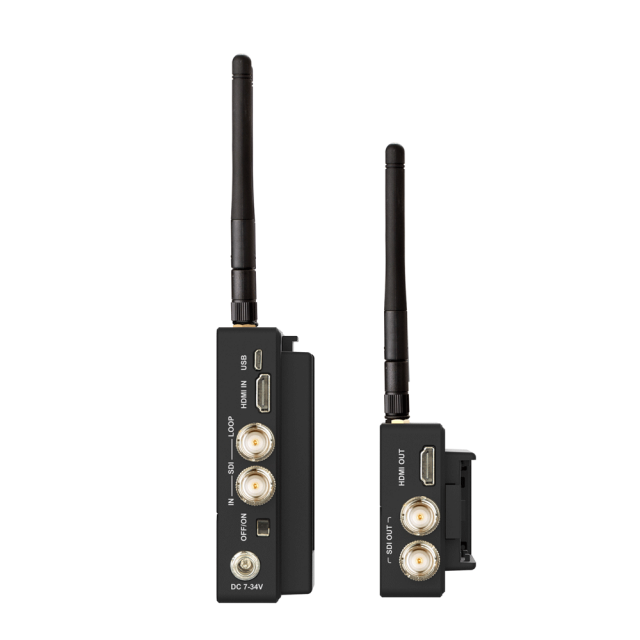

Input & Output

The Transmitter (Tx) has 2 omni antennas, supports
1x 3G/HD-SDI input
1x 3G/HD-SDI loop output
1x HDMI 1.3 input

The Receiver (Rx) has 4 omni antennas, supports
1x 3G/HD-SDI output
1x HDMI 1.3 output

SDI & HDMI formats:
1080p60, 1080p59.94, 1080p50
1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30;
1080psf23.98, 1080psf24
1080i60, 1080i59.94, 1080i50;
720p60, 720p59.94, 720p50

600 meters Transmission

Strong Wall-cross Performance

FLOW2000 wireless supports 2000ft/600m (Line-of-sight) reliable wireless transmission, and featured stronger wall-cross performance due to both RF optimize and image quality optimize, so that will keep video transmission without date lost or crash comparing to regular 5GHz wireless transmitters.
* Supports SDI & HDMI embedded audio (CH1&2) transmission.

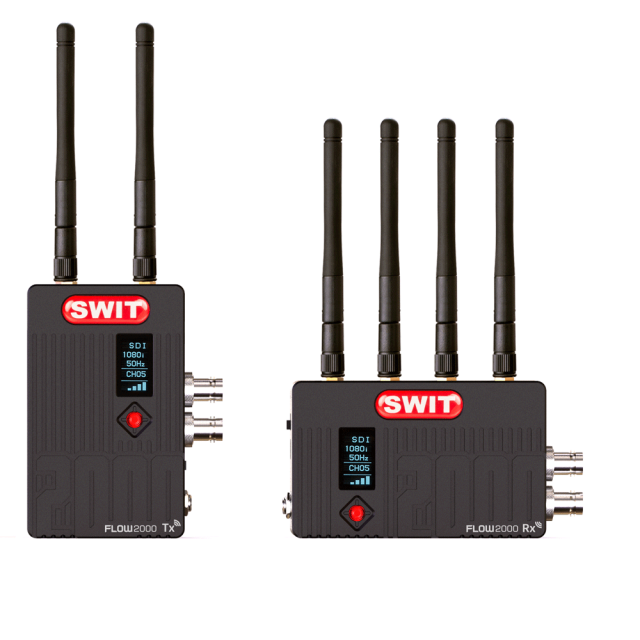

OLED Display & Channel Switch

DFS comply

The FLOW wireless works under 5.1-5.9GHz, with built-in wireless scanner, and detect wireless condition of all frequencies, automatically jump to the best wireless channel to keep reliable connection and transmission, and DFS comply.
You can also switch the wireless channels manually from 7 Non-DFS restricted channels.
Both Tx and Rx are equipped with OLED to display signal format, wireless channel number and signal strength.

Multicast and Double Encryption

Support 1 transmitter to 4 receivers reliable multicast mode. The transmitter and receivers are paired and double encrypted by private transmission protocol and by AES128, in order to protect the footages.

Reclock & Color Reproduction

To ensure the quality of black level, signal noise and color reproduction of the wireless received signal, the FLOW series wireless receiving supports signal re-clock and accurate color reproduction.

USB Firmware Update

The FLOW series wireless provides a Micro USB port, supports OTG USB Firmware update for future more functions.

Power Supply

The power consumtion of Tx and Rx are less than 8W.

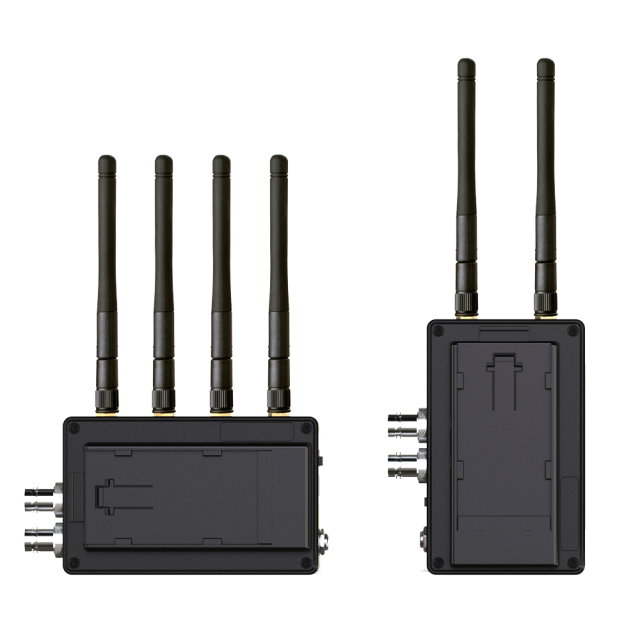

Both Tx and Rx provide NP-F DV battery plate, and 7-34V lockable DC input.



FLOW2000 standard package includes:

1x Transmitter
1x Receiver
1x Articulating arm trestle (Cold shoe and 1/4”)
1x D-tap to pole-tap DC cable
1x AC-DC power adaptor
1x Carrying case (for everything)

 FLOW2000 1T2R Kit includes:

1x Transmitter
2x Receivers
1x Articulating arm trestle (Cold shoe and 1/4”)
2x D-tap to pole-tap DC cable
2x AC-DC adaptor
1x Carrying case (for everything)



Transmitter Receiver
Input 3G/HD-SDI ×1 /
Output 3G/HD-SDI loop ×1 3G/HD-SDI ×2
Format 1080P (60 / 59.94 / 50) The same as transmitter inputs
1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
Wireless frequency 5.17GHz-5.23GHz and 5.75GHz-5.83GHz
Radio modules OFDM 16QAM, 64QAM, QPSK, BPSK
Transmission distance 2000 feet / 600 meters (Line of sight)
Power consumption <=8W <=8W
Radio power 125mW /
Input voltage DC 7~34V DC 7~34V
Working environment Temperature: 0°C -+40°C
Dimension (w/o antenna) 66×106.5×24.7 (mm) 106.5×66×24.7 (mm)
Net weight 236g 245g



Výrobca: Swit
Kategória: Bezdrôtový prenos videa

Hlavné parametre

Vstup bezdrát videoSDI
Vstup bezdrát videoHDMI
