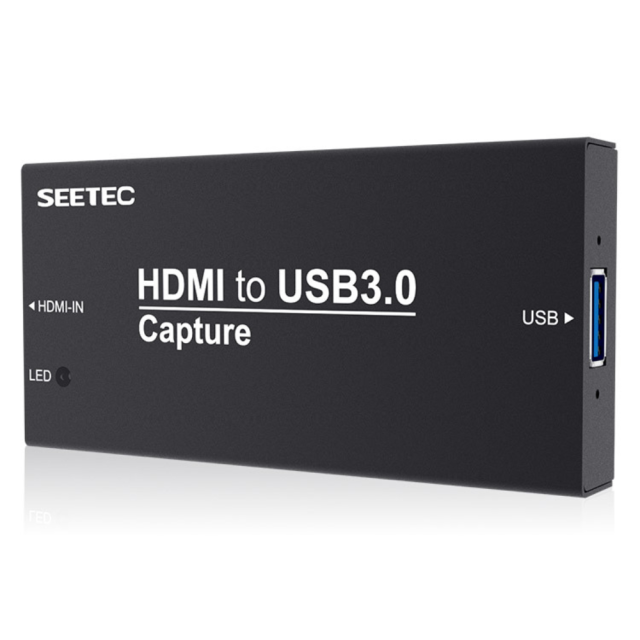

SEETEC HTUSB HDMI to USB 3.0 Capture

Externí USB3 box pro nahrávání HDMI signálu.

Viac informácií

234 € s DPH 195 € bez DPH
-+
Dostupnosť
Praha 3 ks, Bratislava skladom do 2 dní
Výrobca
Kód tovaru:
HTUSB
Pridať do porovnania
Popis produktu

Popis produktu

Externí USB3 box pro nahrávání HDMI signálu.

Product Features:
1. It can capture one single channel HD HDMI video signals.
2. The input and output video signal can reach 1080p/60 Hz.
3. It is compatible with UVC video capture and YUV 422 video output.
4. The UAC is compatible with HDMI audio capture and 48 KHz PCM audio output.
5. It doesn't need to install a driver, and it is truly Plug-and-Play.
6. It is compatible with Windows, Linux, OS X operating systems.



Advanced Features:
1. USB3.0, 300-350MB/s throughput and it is compatible with USB 2.0 40MB/s.
2. The process of video and audio is done by the dongle and will not occupy the CPU.
3. It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically.
4. It can automatically detect the input audio formats and swift it to 48KHz PCM audio.
5. Multiple dongles can be used on one PC
6. The firmware can be updated.
HDMI Input Formats
It meets the HDMI 1.4a standard, and supports 1080p/60Hz 8-bit, (RGB, YUV)

Input Formats
Resolutions: 640x360/640x480/720x480/
720x576/768x576/800x600/856x480/960x540/
1024x576/1024x768/1280x720/1280x800/
1280x960/1280x1024/1368x768/1440x900/
1600x1200/1680x1050/1920x1080
Frame Rate: 25/29.97/30/50/59.94/60 fps

Output Formats
Resolutions: 640x360/640x480/720x480/
720x576/768x576/800x600/856x480/960x540/
1024x576/1024x768/1280x720/1280x800/
1280x960/1280x1024/1368x768/1440x900/
1600x1200/1680x1050/1920x1080/1920x1200/

Video Sampling Rate
HDMI: 165MHz

Audio and Video Capture
It meets the standards of UVC (USB video class) and UAC (USB audio class)

Output Color Space
YUY2, RGB24

Onboard Memory
128 MB DDR3,16 bits@ 400MHz

The Support of OS
(x86 and x64 versions):
Windows 7
Windows 8
Windows 10
Linux (Kernel version 2.6.38 and above)
OS X (10.8 and above)

Software Compatibility
QuickTime Broadcaster (OS X)
QuickTime Player (OS X)
Daum Potplayer (Windows, OS X)
XSplit Broadcaster (Windows, OS X)
VLC (Windows, OS X, Linux)
Wirecast (Windows, OS X) etc.
Cloud Video Conferencing Service
Livestream
Skype
Hangouts
OBS etc.
Parametre

Parametre

Výrobca: SEETEC
Kategória: Strihové karty externé

Hlavné parametre

Zdroj (Input)HDMI
VýstupHDMI
Cieľ (Output)USB
PripojenieUSB 3.0
