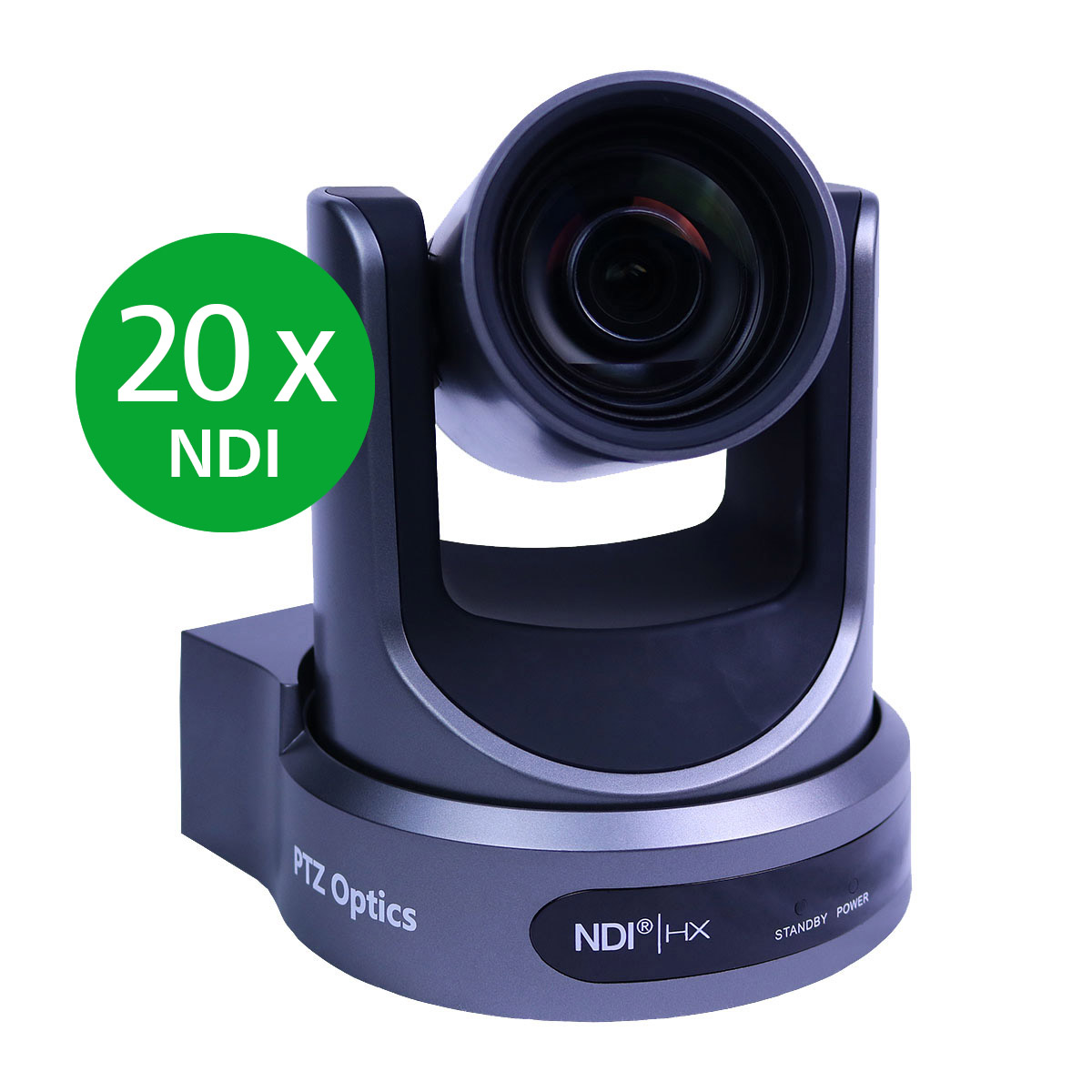

PTZOptics 20X-NDI-GY (GRAY)

PTZ kamera s 20-násobným optickým zoomom, 3G-SDI, HDMI, NDI a kompozitným analógovým výstupom. Kamera navyše disponuje funkciou H.264 / H.265 streamingu a podporuje protokol NDI (len NDI verzie).

Viac informácií

2 494.8 € s DPH 2 079 € bez DPH
-+
Dostupnosť
na telefón
Výrobca
Doprava zdarma pri nákupe tohto produktu
Kód tovaru:
PT20X-NDI-GY-C
Pridať do porovnania
Popis produktu

Popis produktu

PTZ kamera s 20-násobným optickým zoomom, 3G-SDI, HDMI, NDI a kompozitným analógovým výstupom. Kamera navyše disponuje funkciou H.264 / H.265 streamingu a podporuje protokol NDI (len NDI verzie).

The NDI Broadcast and Conference Camera, in gray, from PTZOptics, allows you to output up to a 1080p60 signal simultaneously via HDMI, SDI, and NDI or IP outputs (NDI and IP share the same RJ45 port). The NDI protocol, NewTek's innovative IP technology, gives you low-latency access to audio and video devices anywhere on your network for various A/V applications. You won't be restricted to sources connected directly to a single system. The 12X-NDI comes with a NewTek NDI license, so you're set to go right out of the box. The camera also has a composite output that can be used on its own (without any of the other outputs at the same time) to deliver 576i/480i resolution.

The NDI has a 3.5 - 42.3mm lens providing a 12x zoom range which is ideal for smaller meeting rooms and classrooms. The NDI versions of the PTZOptics 12x cameras are ideal for streaming applications, houses of worship, sports streaming, live productions and events, and when cable runs might be an issue (when you'd rather run Ethernet cables instead of coax). The camera does well in low-light conditions owing to a fast f/1.8 - 2.8 lens aperture and minimum illumination requirement of only 0.5 lux. On top of this, built-in wide dynamic range and 2D and 3D noise reduction further enhance the conferencing experience. The camera is completely open-source, so developers can customize everything as they prefer using simple HTML.

The NDI can be powered over PoE or using the included power supply. It offers RS-232 and RS-485 serial control, an audio line-in for HDMI and NDI/IP streams, and 10 presets via the included IR remote control or 255 via serial or IP control.

Key Features

  • Simultaneous 1080p60 output via HDMI, SDI, and NDI/IP
  • Low-latency NDI video
  • Composite output (576i/480i)
  • 12x/20x/30x optical zoom
  • Minimum illumination requirement of only 0.5 lux, for better low-light performance
  • Built-in wide dynamic range and 2D/3D noise reduction
  • PoE support
  • RS-232 and RS-485 serial control
  • Audio line-in for HDMI and NDI/IP streams
  • 10 presets via the included IR remote control or 255 via serial or IP control
  • H.264, H.265, and MJPEG streaming over RJ45 port
  • Open-source design

Parametre

Parametre

Výrobca: PTZOptics
Kategória: PTZ

Hlavné parametre

Veľkosť snímača1/2,7"
RozlíšenieFull HD
RozlíšenieHDV (720p)
Video vstupHDMI
Video vstupNDI
Video vstup3G-SDI
Stream službyYouTube Live
Stream službyFacebook Live
Stream službyUSTREAM
Stream službyWOWZA
Optický Zoom20x
Bajonetintegrovaný objektív
Interný záznamNie
VýstupHDMI
VýstupSDI
VýstupNDI
VýstupRTMP
Výstup3G SDI

Ostatné parametre

Vyhotovenie kameryPTZ
FPSHD 60fps
Svetelnosť objektívu1.8f
Min. ohnisková vzdialenosť4.4mm
Max. ohnisková vzdialenosť88.5mm
Farebná hĺbka8 bit
Farebná hĺbka10 bit
Ďalšie funkciePTZ
Ďalšie funkcieStreaming
Ďalšie funkciePoE
Ďalšie funkcieNDI / NDI HX
Ovládací protokolVISCA
OBSAH BALENIA

  • PTZOptics 20X-NDI Broadcast and Conference Camera
  • RS-232 Cable
  • Power Supply and Cord
  • IR Remote Control
  • 2 x AAA Battery

ŠPECIFIKÁCIE

Image Sensor 2.1 MP, 1/2.7" CMOS
Output NDI: NDI|HX (over IP interface)
IP Interface: 1 x RJ45
3G-SDI: 1 x BNC (75 Ohms)
HDMI: 1 x HDMI type A
Composite: 1 x 1/8"/ 3.5 mm
Audio Line In Analog Audio: 1 x 1/8"/ 3.5 mm (NDI/IP, HDMI)
Resolution NDI/IP/SDI/HDMI:
1080p: 60/50/30/25
1080i: 60/50
720p: 60/50/30/25

Composite:
576i: 30
480i: 30

Note: All the outputs can stream up to 1080p60 simultaneously except for composite. When you use composite, the other outputs turn off.
Lens 4.42 - 88.5mm, f/1.8 - 2.8
Zoom 20x optical
Field of View Horizontal: 6.9° (tele) to 72.5° (wide)
Vertical: 3.9° (tele) to 44.8° (wide)
Minimum Illumination 0.5 lux at f/1.8, AGC on
Shutter Speed 1/30 - 1/10000 sec
SNR ≥55 dB
Flip / Mirror Vertical
Working Environment     Indoor
Pan ±170°
Tilt Up: 90°
Down: 30°
Presets 10 via IR (255 via serial or IP)
Communication RS-232: 1 x 8-pin mini DIN input, 1 x 8-pin mini DIN output
RS-485: 1 x 2-pin
PELCO-D/P
NDI
Compression H.264, H.265, and MJPEG streaming over RJ45 LAN port
Baud Rate 2400 / 4800 / 9600 bits
Input Voltage 12 VDC (10.8 - 13 VDC) or PoE 802.3af
Power Supply JEITA-type power adapter (12 VDC in) included
Power Consumption 12 W (max)
USB USB 2.0 (future manufacturer use only)
Dimensions 5.6 x 6.5 x 6.7" / 14 x 16 x 17 cm
5.6 x 7.8 x 6.7" / 14 x 20 x 17 cm (with tilt)
Weight 3 lb / 1.4 kg
