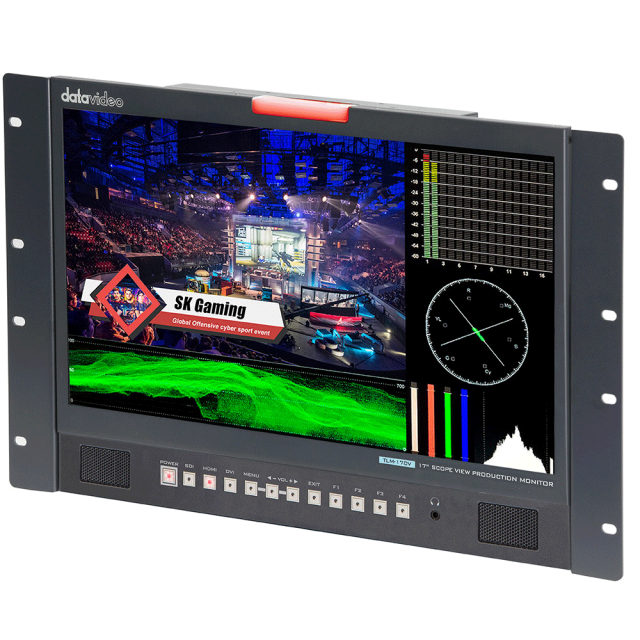

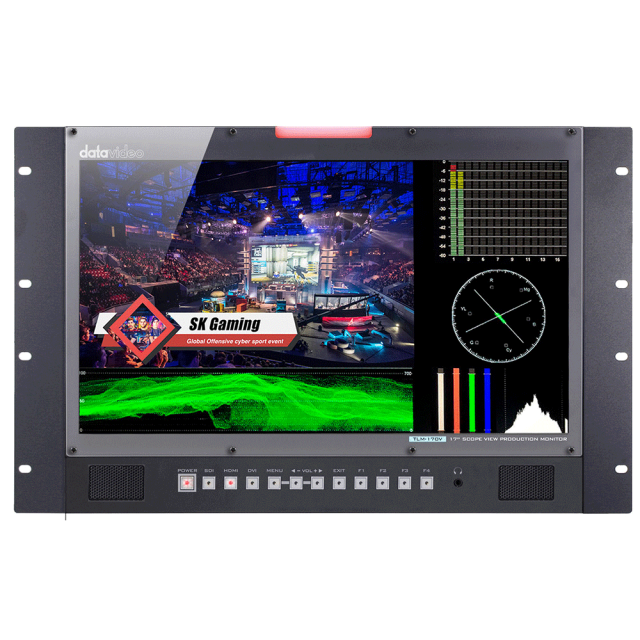

Datavideo TLM-170VR 17.3" Full HD IPS LCD rackmount monitor

17,3" IPS LED rackmount monitor s rozlíšením 1920x1080P. Vstupy 3Gbps / HD / SD-SDI loop through, 2x HDMI vstup.

Viac informácií

1 674 € 1 557.6 € s DPH 1 298 € bez DPH
-+
Dostupnosť
3-5 dní
Výrobca
Doprava zdarma pri nákupe tohto produktu
Kód tovaru:
2100-0195
Pridať do porovnania
Popis produktu

Popis produktu

17,3" IPS LED rackmount monitor s rozlíšením 1920x1080P. Vstupy 3Gbps / HD / SD-SDI loop through, 2x HDMI vstup.

The TLM-170V features 1920x1080 full HD resolutions and 170° wide viewing angle for outstanding viewing experience. The TLM-170V includes various built-in functions such as waveform, vector scope and SDI/HDMI cross converter. Because of its portability, the TLM-170V can be flexibly installed in OB Van, satellite truck and central control room.

Features

  • 1920 x 1080P IPS Panel Resolution
  • 3G-SDI video input with loop-through output
  • HDMI video input with loop-through output
  • Built-in tally for live broadcast
  • Supports Waveform, Vectorscope and Audio Level Meter, Peaking Focus Assist, Zoom IN/OUT, Pixel to Pixel, Underscan, Check Field and etc.
  • SDI/HDMI cross format conversion
  • Brightness, contrast, color saturation and LED backlight
  • Selectable color temperatures
  • Front panel headphone jack
  • User-defined F1 / F2 / F3 / F4 shortcut keys
  • USB Firmware Upgrade

Parametre

Parametre

Výrobca: Datavideo
Kategória: Štúdiové monitory

Hlavné parametre

Svítivost300cd/m2
Velikost17.3"
Vstupy monitoraHDMI
Vstupy monitoraSDI
Rozlišení panelu1920x1080

Ostatné parametre

TallyÁno
Dalšie funkciedo racku
Dalšie funkcieTally
Dalšie funkcieOdolný
OBSAH BALENIA

  • 1 x AD Switch DC 12V
  • 1 x Monitor Stand
  • 2 x Velcro
  • 1 x Thank You Card

ŠPECIFIKÁCIE

Screen
17.3" LED Backlit

Chassis
7RU rackmount

Resolution
1920x1080

Viewing Angle
(H) +89/-89°
(V) +89/-89°

Luminance/Contrast
300cd/m²
700:1

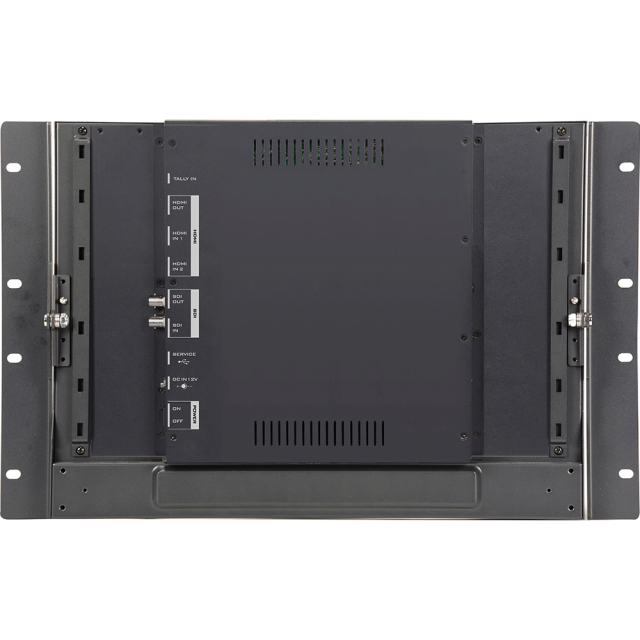

Video Inputs
1x 3G/HD/SD-SDI
2x HDMI

Loop Through
1x 3G/HD/SD-SDI
1x HDMI

Supported Input Resolutions
1080p(23.98/24/25/29.97/30/50/59.95/60Hz)
1080i(50/59.94/60Hz),
720p(50/59.94/60Hz),
576i(PAL), 480i(NTSC)

Aspect Ratio
16:9, 4:3

Tally LED
Live (Red)
Cued (Green)

Audio In/Out
2x Speaker
1x Headphone Jack

Special Features

  • SDI and HDMI cross conversion,
  • Support column (YRGB peak),
  • time code, waveform,
  • vector scope & audio level meter,
  • peaking focus assist,
  • zoom, pix to pix,
  • underscan, check field

Dimension (LxWxH)
403 x 305 x 41 mm

Weight
4.5 kg

Operating Temp. Range
0~40 °C

Power
DC 10-18V, 32W
