Datavideo HDR-80 4K ProRes Video Recorder

Rekordér Datavideo HDR-80 dokáže nahrávať až štyri 3G SDI video signály alebo jeden 4K/UHD signál cez HDMI alebo 12G SDI. Je vybavený streo XLR vstupmi aj výstupmi, Gen-lock aj Time code vstupmi a výstupmi, je ovládateľný cez DVIP / GPI / RS-2332, záznam sa ukladá na 2 SSD disky a zariadenie môže slúžiť aj ako prehrávač.

Viac informácií

2 622 € s DPH 2 185 € bez DPH
-+
Dostupnosť
3-5 dní
Výrobca
Doprava zdarma pri nákupe tohto produktu
Kód tovaru:
2600-0280
Pridať do porovnania
Popis produktu

Popis produktu

Rekordér Datavideo HDR-80 dokáže nahrávať až štyri 3G SDI video signály alebo jeden 4K/UHD signál cez HDMI alebo 12G SDI. Je vybavený streo XLR vstupmi aj výstupmi, Gen-lock aj Time code vstupmi a výstupmi, je ovládateľný cez DVIP / GPI / RS-2332, záznam sa ukladá na 2 SSD disky a zariadenie môže slúžiť aj ako prehrávač.

UHD 4K Recording and Compressed in 10-Bit 4:2:2 ProRes
Up to UHD 4K Recording over HDMI 12G-SDI or 4x 3G-SDI. ISO recording for up to 4x 3G-SDI sources.

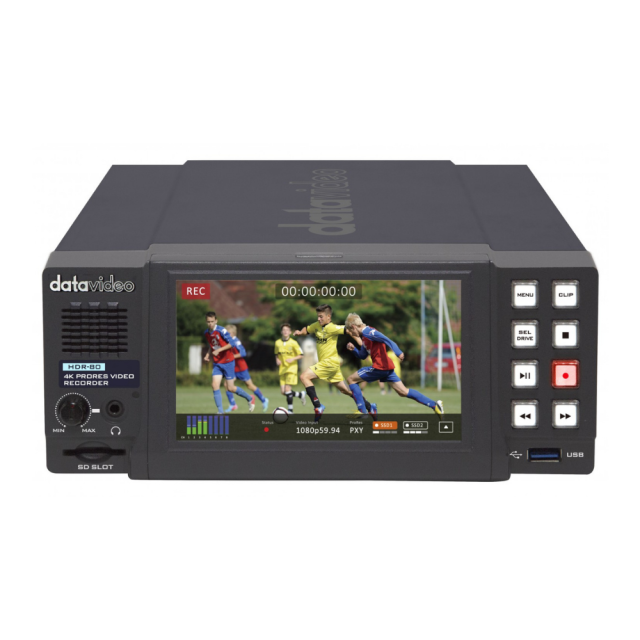

Large 5" LCD Touch screen for operating and monitoring

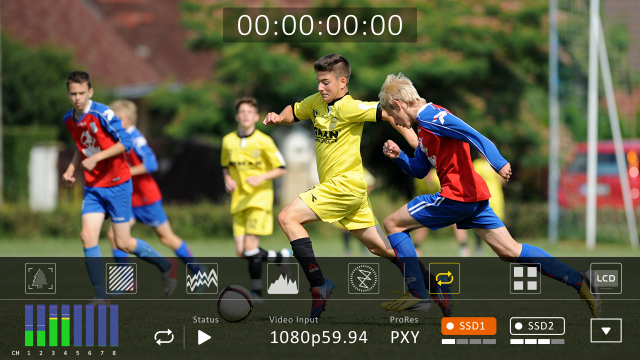

The HDR-80 has a built-in 5-inch touch screen, allowing you to easily configure parameters and view the live video.

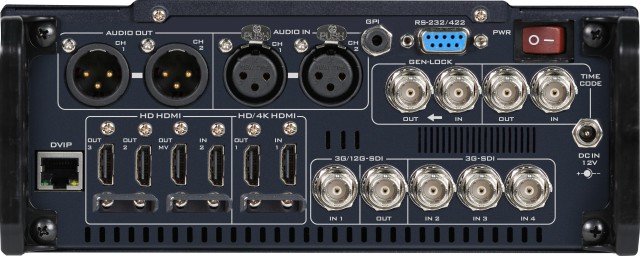

Supports multiple inputs and output configurations
12G SDI /4K HDMI /3 x 3G-SDI input, output with embedded audio

2 x XLR Analogue Audio Inputs and 2 x XLR Analogue Audio Outputs
Audio input can be embedded into the video for output playback thus making HDR-80 the device for live event broadcast.



Convenient for post-production or play out

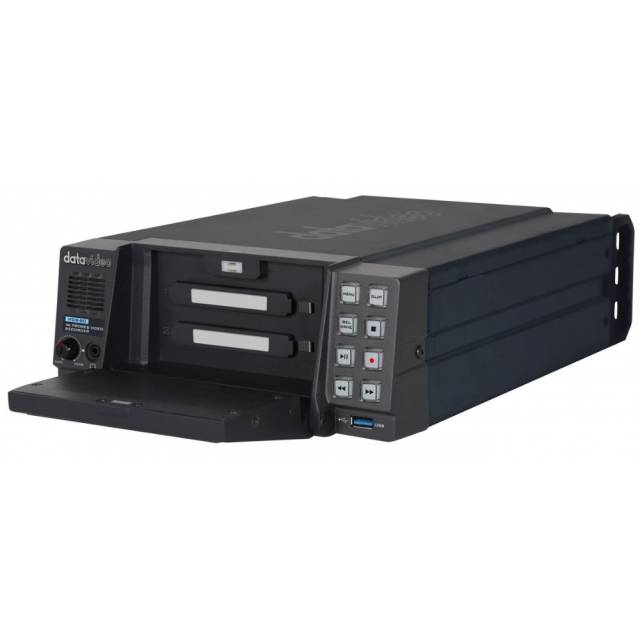

Record compressed in ProRes on two 2.5" SSDs, conveniently hidden behind the display.

HD quad-channel recording, 3G ISO Recording, and HD playback features

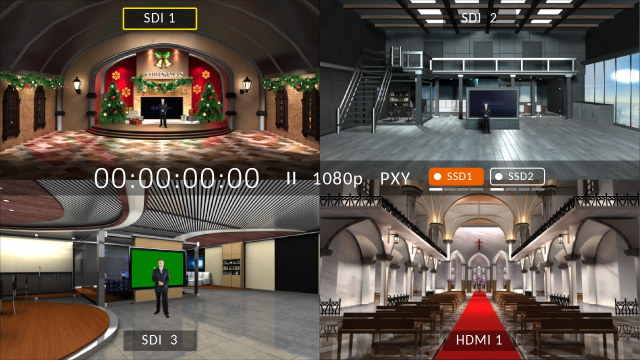

Instead of recording a single source, HDR-80 can be configured to record up to four HD streams at the same time using the 4x 3G-SDI interface.

This can be used for various applications, including ISO recording.

Controllable by DVIP/GPI/RS-232
The HDR-80 supports DVIP (Ethernet), GPI and RS-232 enabling the recorder to be controlled in a different application. The control set is available in the downloads section. (link to section)



Time code supported, Black burst and Tri-Level Sync Reference
Provides support for black burst and tri-level sync signals



Closed Caption supporting
Closed caption function allowing subtitles to be saved separately as metadata in .mov file format for quick post-editing.



Workflow:

Datavideo HDR-80 workflow

Parametre

Parametre

Výrobca: Datavideo
Kategória: Štúdiové rekordéry
ŠPECIFIKÁCIE

Specifications : HDR-80 4K ProRes Video Recorder

Video Standard

UHD & HD

Video Format

2160p 23.98/24/25/29.97/30/50/59.94/60Hz
1080p 23.98/24/25/29.97/30/50/59.94/60Hz
1080i 50/59.94/60Hz
720p 50/59.94/60Hz

Supported Video Input Signal

1x 3G/12G-SDI, 3x 3G-SDI
1x HDMI 2.0, 1x HDMI 1.4

Monitoring / Playback Output

1x 3G/12G-SDI
1x HDMI 2.0, 3x HDMI 1.4

Analog Audio Input / Output

 Input: 2x Balanced XLR (Stereo pair)

 Output: 2x Balanced XLR (Stereo pair)

Embedded Audio

SDI Input / Output (8CH )
HDMI Input / Output (8CH)

Storage Medium

2.5” SSD, USB Flash Drive, SD Card

Estimated Record Time (min per 10GB)

SD: 90 (Proxy), 39 (LT), 27 (Standard), 18 (HQ)
HD: 27 (Proxy), 11.5 (LT), 8 (Standard), 5.5 (HQ)
3G: 13 (Proxy), 6 (LT), 4 (Standard), 2.5 (HQ)

Recording Media

Removable SSDx2, SD Card

Storage File System

exFAT

Recorded File Format

QuickTime .MOV

Video Recording Bit Rate / Color Sampling

ProRes HQ 4:2:2
ProRes Standard 4:2:2
ProRes LT 4:2:2
ProRes Proxy 4:2:2

Audio Recording Format

Uncompressed PCM
Sampling rate 48KHz 24bit

Time Code In / Out

Yes (BNC in/out)

External Sync / Genlock

Black Burst & Tri-level with loop thru

Chassis

Desktop

Build in Control Panel

Size: 5"
Resolution: 1280 x 720

Remote Control

SDI/HDMI (Time Code Trigger)
Ethernet (DVIP)
RS-232/422 (RS-232/422 Selectable Sony S Protocol)
GPI Trigger (Trigger input: Edge or Level Trigger Selectable Tally)


Operating Temp. Range

0~40 °C

Power

DC 12V
