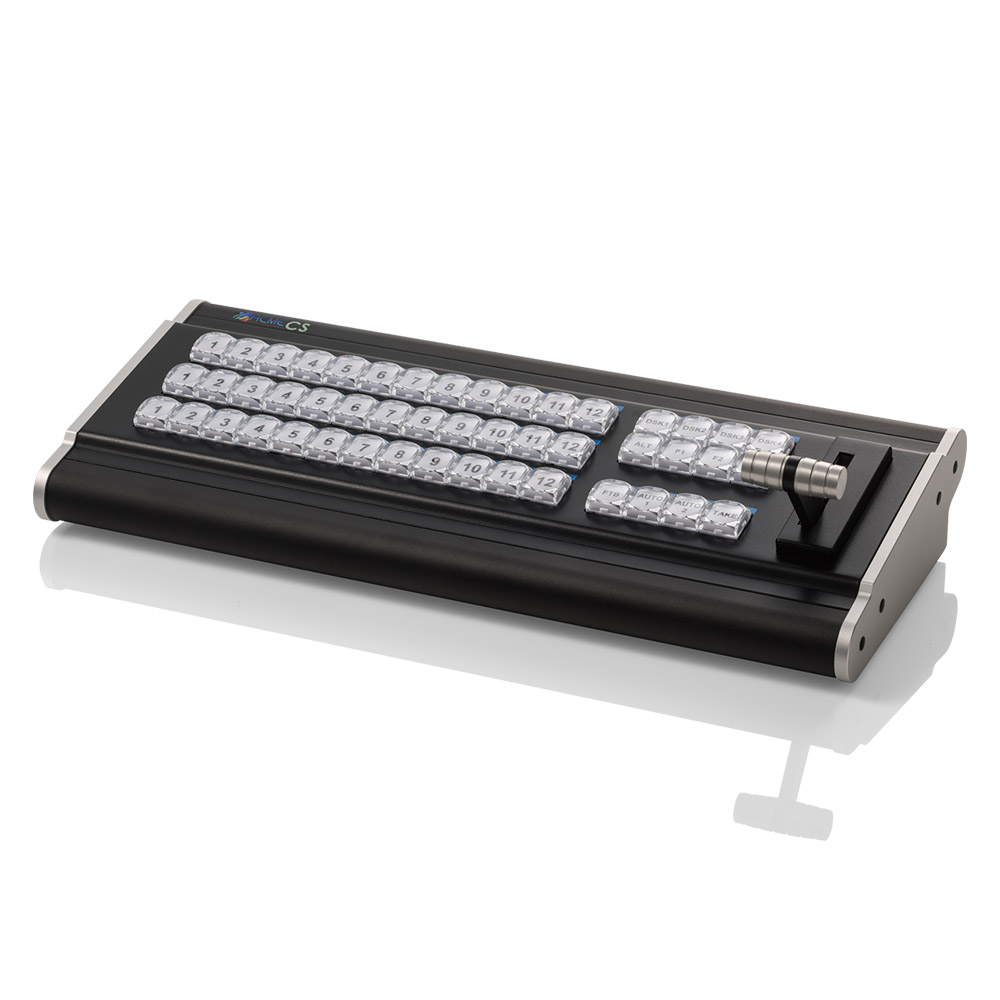

vMix Control Surface

Ovládací panel pre réžiu vMix. Panel sa pripája k počítaču prostredníctvom USB kábla (potrebné nainštalovať ovládač zo stránky výrobcu).

Viac informácií

1 198.8 € s DPH 999 € bez DPH
-+
Dostupnosť
7-14 dní
Výrobca
Doprava zdarma pri nákupe tohto produktu
Kód tovaru:
ACME-CS
Pridať do porovnania
Popis produktu

Popis produktu

Ovládací panel pre réžiu vMix. Panel sa pripája k počítaču prostredníctvom USB kábla (potrebné nainštalovať ovládač zo stránky výrobcu).

Overlay Bus (Top Row)
In vMix, graphics placed on top of other sources are known as Overlays. These are also known as Down Stream Keyers (DSK) because the graphics are usually "keyed" over live video after any upstream effects are applied. The DSK buttons on the Control Surface correspond to the 1 through 4 numbers underneath each input in vMix.

  1. Select the Overlay channel you wish to use. Example: if you want to overlay an input on channel 1, press the DSK1 button. It will now light up indicating overlay channel one on the first 12 inputs is ready to be used.
  2. Press the desired input you wish to overlay. Example: if you have a lower third title in input 6, press button 6 on the Overlay row. Button 6 will then light up indicating that input 6 is overlaid on channel 1 of the chosen input.
  3. To see which inputs are currently active on each overlay channel, you can cycle through the 4 DSK buttons. If an overlay channel has an active input, the corresponding input will light up.

Program Bus (Middle Row)

Press the number of the input on the Program row that you want to assign to the Program or Output.
This will cut or take the input directly to output without any transitions.
Preview Bus (Bottom Row)

Press the number of the input on the Preview row that you want to assign to Preview.

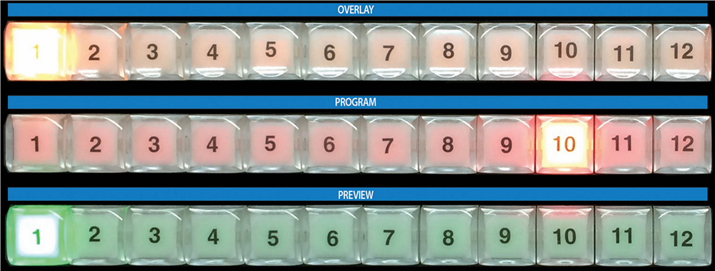

Overlay Preview Program Bus


Function Buttons (F1, F2, F3)

  1. To program the Function buttons, open up the settings window in vMix and click the Shortcuts tab.
  2. Click Add and a new window opens, with drop down menus showing usable keys and available vMix shortcuts.
  3. Click the Key drop down and scroll down to SurfaceF1, SurfaceF2, SurfaceF3. These correspond to the F1, F2 and F3 keys on the Control Surface.
  4. Select the desired Function. Example: if you wanted a button to start recording, select Start Recording.
  5. Press Ok and the selected function button is now ready to be used.

ALT Button

The ALT button can be held down in conjunction with other buttons in order to change their functionality.

This will allow enhancements to be added to future updates of vMix.

It presently operates as follows:

  1. Hold down ALT while pressing a Preview row button to start playing that input if it is a video clip.
  2. Hold down ALT while pressing one of the Overlay row buttons to turn on that overlay in the Preview window instead of directly to Program/Output. During the next transition the previewed Overlay will automatically be activated over the top of Program/Output.

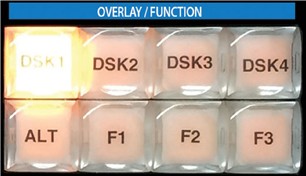

Overlay Function Buttons

Transition Buttons
In live switching, changing from one camera or clip to another is called a transition. The vMix Control Surface has three available transition types available, corresponding to transition buttons in vMix.

  1. For a hard cut between two inputs, press the "Take" button.
  2. To use a stylized transition such as a wipe, fade or zoom, there are customizable transitions located at the top of the vMix interface. "Auto 1" and "Auto 2" correspond to the first two transitions below Cut. When these transition types are changed in the vMix window, the transition will also change for the buttons.
  3. Press "FTB" to fade the live output to a black screen. (Fade To Black)

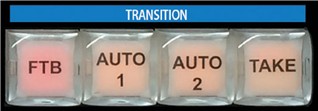

Transition Buttons

Control Surface Specs
Keys   Professional key switches. Color backlit with red, green, and amber LEDs.
Power / Communication     USB-powered via included USB cable
Input Switching   Twelve Program, Preview and Overlay buttons in traditional crosspoint layout for input control
DSK   Four Downstream Keyer buttons to activate Overlays
Transitions   Two transition buttons to control configured transitions including Cut, Fade, Zoom, Wipe, Slide, Fly, CrossZoom, FlyRotate, Cube, and CubeZoom. Take button for quick cuts.
T-Bar   Professional quality, smooth motion t-bar for clean transitions
Function Keys   User assignable functions keys for automation through shortcuts
Dimensions   Width: 15.4"
Height: 2.6"
Depth: 6.75"
Weight   10.6 lbs
Parametre

Parametre

Výrobca: ACME
Kategória: Ovládacie panely
