Popis produktu

Popis produktu

7 inch 3000nit Super Bright HDR LCD Monitor

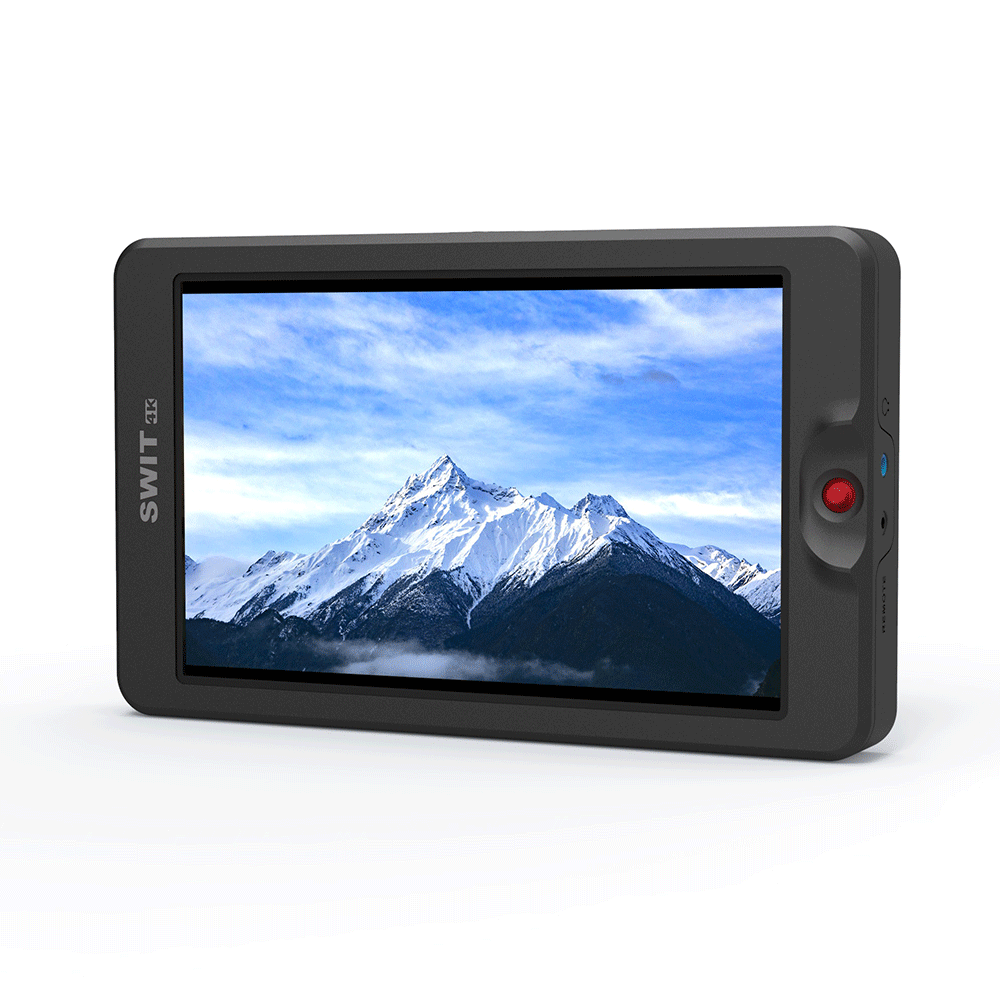

CM-S75F 7 inch 3000nit Super Bright HDR LCD Monitor

7-inch IPS LCD, 1920×1200 FHD
3000nit super bright, sunlight visible
PQ/HLG HDR monitoring
3G/HD-SDI input and loop out
HDMI 1.4 (4K30p) input and loop out
2x 4x Quick zoom-in and Pan
Peaking focus assist and precision adjust
Waveform / Vector / Histogram
Build-in 30 kinds of De-log 3DLUTs
User DIT 3DLUT import by SD card
2-ch SDI/HDMI audio meters display
Super False color, Zebra stripes, Anamorphic
Single joystick quick operation
Built-in NP-F plate, V-mount for option
Firmware update by SD card

7-inch 3000nit Super Bright

Sunlight visible, PQ/HLG HDR

The CM-S75F adopts a 7-inch super high bright LCD, the Max brightness is 3000nit, visible under sunlight, and built-in PQ, HLG HDR. The native resolution is Full HD 1920×1200, contrast 1200:1

Input/Output Interfaces
3G-SDI、4K-HDMI

CM-S75F monitor supports:
3G/HD-SDI input × 1
3G/HD-SDI loop output × 1
HDMI 1.4 (4K30p) input × 1
HDMI 1.4 (4K30p) loop output × 1
3.5mm embedded audio output
SD card input for 3DLUT upload and Firmware upgrade
Single Joystick Operation
The monitor operation can be easily realized by only one Joystick:
Up: Quick Zoom-in mode
Down: Quick adjust backlight
Long Down: Delete current scene
Left/Right: Preset Scenes switching
Long Left: Enter Menu system
Long Right: Add a new scene
Press down: Edit tools shortcuts / Confirm settings

Quick Zoom-in and Pan
Scroll the joystick up, to zoom-in the image by 2x or 4x; and during zoom-in mode, press the joystick, you can easily pan the image up/down/left/right by the joystick.

Anamorphic De-Squeeze
Enables de-squeeze the image from a camera utilizing anamorphic lens, Aspect Formats:
16x9,
4x3,
x1.3 Anamorphic De-Squeeze
x2.0 Anamorphic De-Squeeze
x2.0 MAG Anamorphic De-Squeeze

Scene Layout Edit and Switch
Different from the traditional multi-buttons monitors, the CM-S75F adopts the preset scenes and switching operations. You can add up to 8 scenes, and add 8 function shortcuts to each scene. Scroll the joystick left / right to switch between the layout scenes easily, instead of complex menu buttons operations.

Built-in De-log 3DLUT
CM-S75F has built-in HLG, PQ3000, PQ10000 HDR 3DLUTs and 30 kinds of Rec709 De-log 3DLUT, Includes S-log2/3, V-log, C-log1/2/3, Log-C, J-log1, RedLog, BMD, FujiFilm, GoPro, DJI etc, to convert log mode to REC709 for all major cameras.

User 3DLUT upload
User 3DLUT cube or calibration 3DLUT cube can be uploaded to the monitor by SD card. Support 17^3, 33^3 and 65^3 cubes. Max 16 user 3DLUTs can be restored.

Super False Color Exposure Assist
Besides normal spectrum false color, the CM-S75F supports more powerful Super False Color mode, including under-exposure / Over-exposure / 18 degree grey / Skin tone indications, to help you to get a correct exposure easily. The exposure indicators are calculated for different cameras.

Power Input
CM-S75F has a built-in NP-F DV battery slot, supports 11-17V DC-IN (5.5/2.1mm pole-tap), and provides an optional V-mount plate to install V-mount batteries.
The Max power consumption is 18.8W with full 3000nit backlight.
