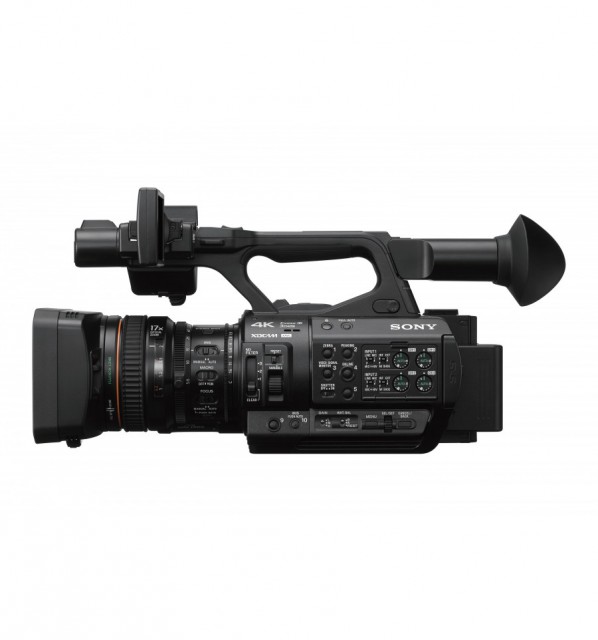

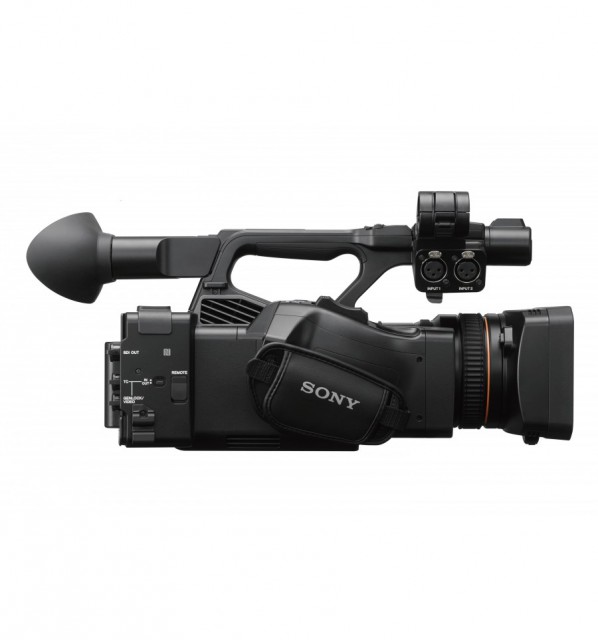

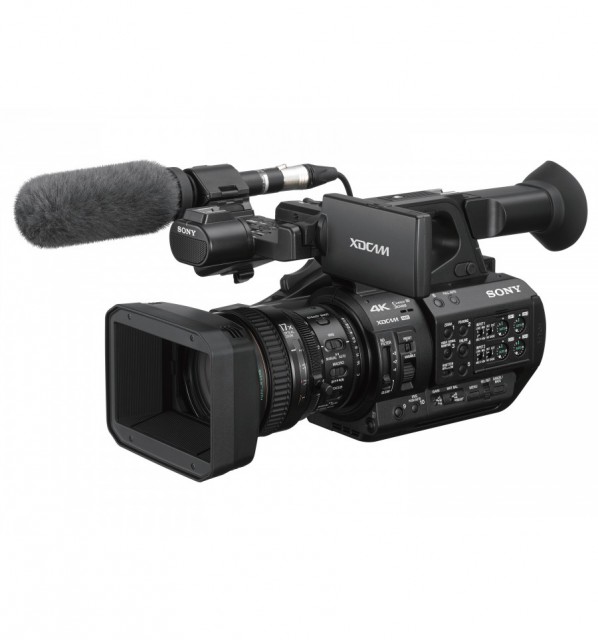

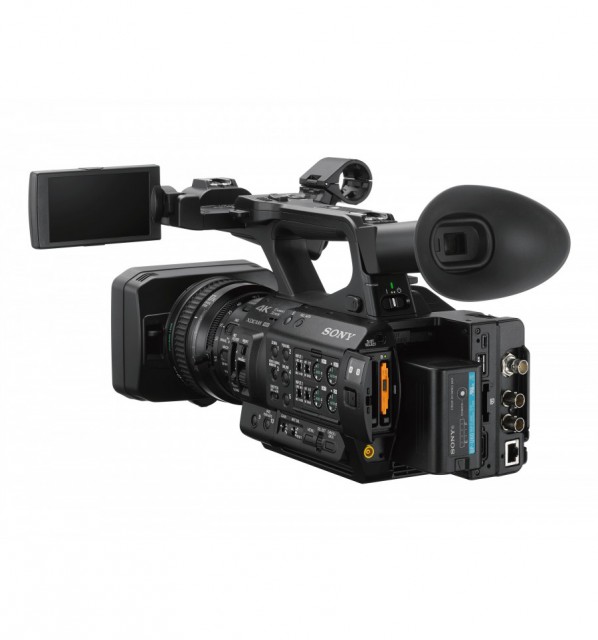

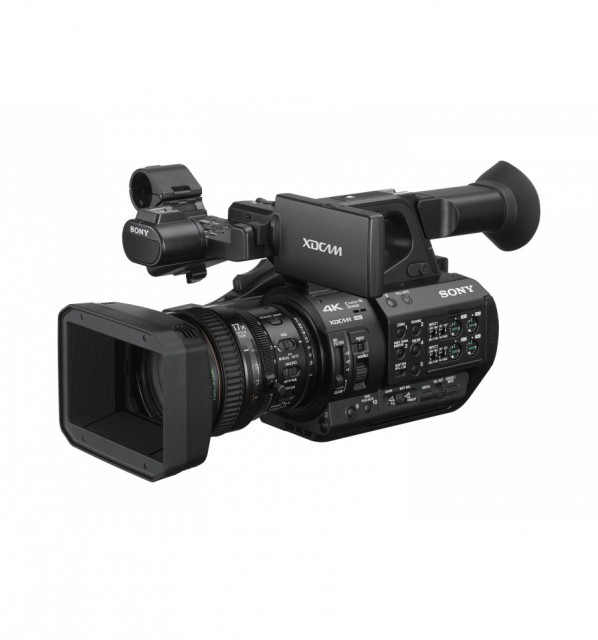

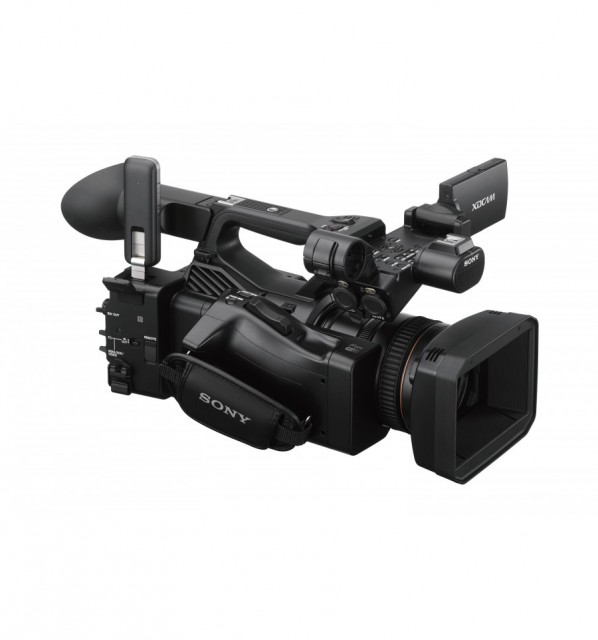

Sony PXW-Z280

Sony PXW-Z280 je vybavená tromi 4K 3CMOS 1/2 senzormi, ktoré jej umožňujú vytvárať perfektnú hĺbku ostrosti a ešte živší obraz. Okrem vylepšeného AF s rozpoznávaním tváre Vám táto kamera poskytuje aj výber medzi S-LOG3 a HLG. Ten Vám umožní flexibilitu aj v produkcií HDR a to za akýchkoľvek podmienok.

Viac informácií

7 380 € s DPH 6 150 € bez DPH
-+
Dostupnosť
na otázku

Zobraziť všetko príslušenstvo

Popis produktu ŠPECIFIKÁCIE OBSAH BALENIA

Popis produktu

Sony PXW-Z280 je vybavená tromi 4K 3CMOS 1/2 senzormi, ktoré jej umožňujú vytvárať perfektnú hĺbku ostrosti a ešte živší obraz. Okrem vylepšeného AF s rozpoznávaním tváre Vám táto kamera poskytuje aj výber medzi S-LOG3 a HLG. Ten Vám umožní flexibilitu aj v produkcií HDR a to za akýchkoľvek podmienok.

Revolutionary networking capabilities
Deliver your content faster wherever you are. PXW-Z280 is the world’s first camcorder with built-in Dual Link Cellular connection for double the uplink performance and reliability. Integrated 12G-SDI supports transfers at up to 12Gbps over a standard SDI cable.

The complete package for professionals
Unpack and shoot from day one. Advanced XAVC-Intra and XAVC-Long for 4K QFHD and HD, plus MPEG HD422, MPEG HD and DVCAM to support any workflow. Familiar Sony control layout and operation minimise training requirements.

World's first 1/2-type 3CMOS Sensor for broadcast 4K
The Z280’s all-new Exmor R™ imager is custom-designed for broadcast 4K acquisition. Its three 1/2-type Exmor R™ CMOS deliver a deep depth of field with superb image quality. Red, blue, and green light are independently captured by separate image sensors, contributing to high resolution, high sensitivity of F12 (59.94p) and wide dynamic range. An advanced LSI (featuring intelligent noise reduction, enhanced detail reproduction and distortion correction technologies) delivers remarkably lifelike 4K 4:2:2 10-bit images. Even if you’re delivering in HD, your recordings will capture detail and image texture that HD sensors simply cannot see.

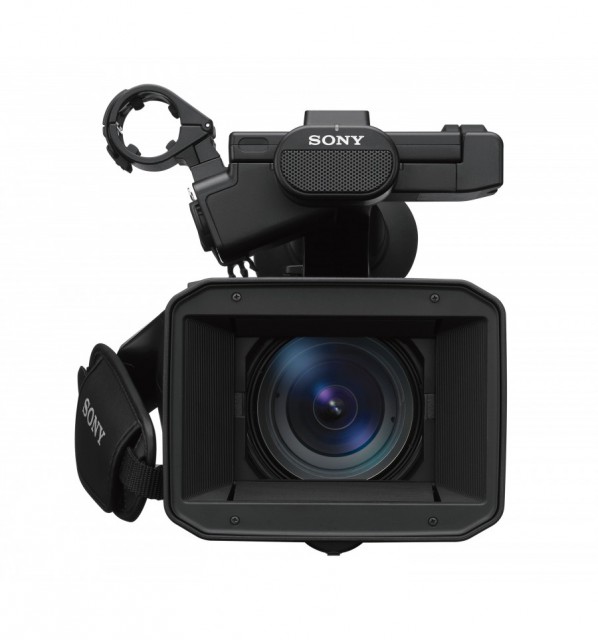

17x professional HD zoom lens with three independent rings with end-stop and large focal length
The PXW-Z280 is equipped with a 17x professional zoom lens able to zoom from 30.3mm to 515mm (35mm equivalent). The 1/2-inch type lens has three independent control rings with end-stop, which allows manual control of focus, zoom and iris, making for better and faster adjustment.

The image can be enlarged without any picture degradation in HD mode and 34x times zoom equivalent image is captured with sensor cropping extender.

Spectacular HDR performance
Demand for HDR content is increasing and Z280 offers you a choice of two powerful workflows.

  • S-Log2/3 is the proven choice for premium applications where you wish to capture as much data as possible for the ultimate flexibility in grading
  • Instant HDR Workflow is all about speed. Shoot, edit and view content in Hybrid Log-Gamma (HLG) to deliver content quickly without compromising on imaging expression and quality of content

Amazingly fast precision auto focus
The PXW-Z280 features newly developed Face detection AF. You can choose between Face Priority AF and Face Only AF. Simply keep the person in frame and and however you move to obtain a better angle, you can be confident the PXW-Z280 will keep your subject in pin-sharp focus.

Built-in electronic Variable ND Filters
Sony’s ground-breaking integration of electronic variable ND Filters into the body of a camcorder enables fast, agile shooting. Moving from shadowy interiors to bright sun-lit exteriors is no problem with PXW-Z280. Unlike conventional optical ND filters, the electronic ND filter on the PXW-Z280 can be controlled from 1/4ND to 1/128ND linearly while ND Filters can be set to fully auto. You can even manually adjust Depth of Field using the iris lens ring, while relying on the PXW-Z280 to maintain constant exposure without changing gain nor shutter speed.

12G-SDI accelerated workflow
Revolutionise your workflow with 12Gbps content transfer – four times the bandwidth of 3G-SDI over a standard SDI cable and ideal for working with highest quality 4K content or speeding through HD content. Sony is the first broadcast manufacturer to build 12G-SDI into a compact handheld camcorder. Once you’ve tried it, you won’t want to use anything else.

Accurate OLED viewfinder
An expansive 0.5-inch high quality OLED viewfinder is perfectly offset for right-eye or left-eye viewing. OLED’s superb accuracy, high contrast and high resolution (2.36M dot) enables precise manual focus and eliminates any colour-breaking phenomenon.

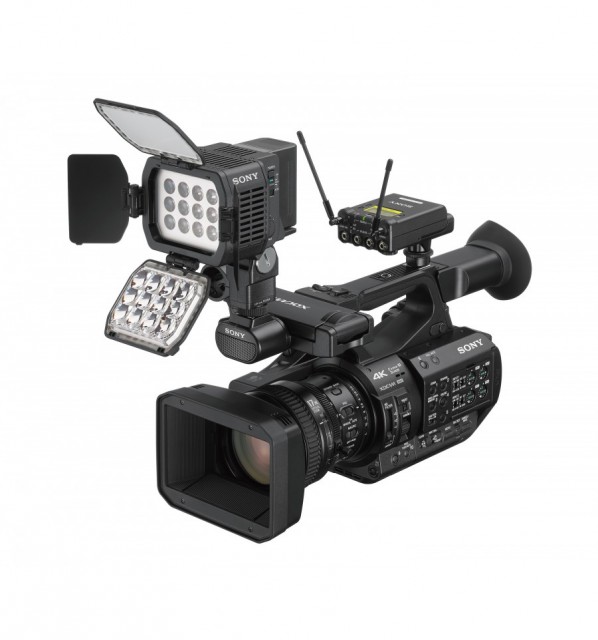

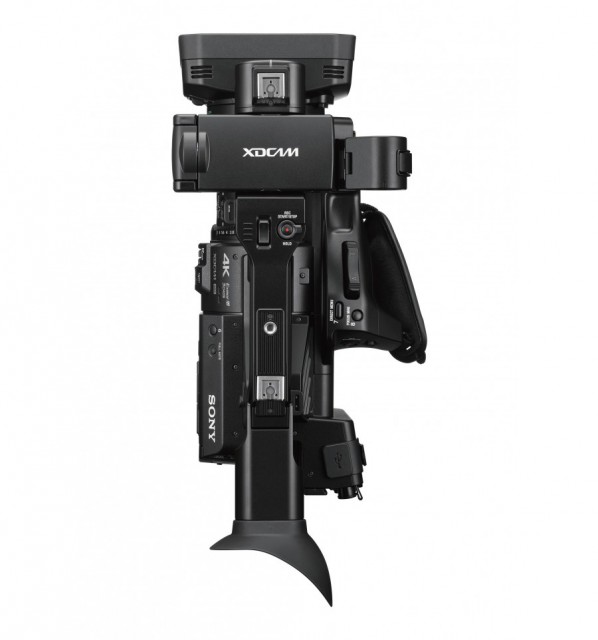

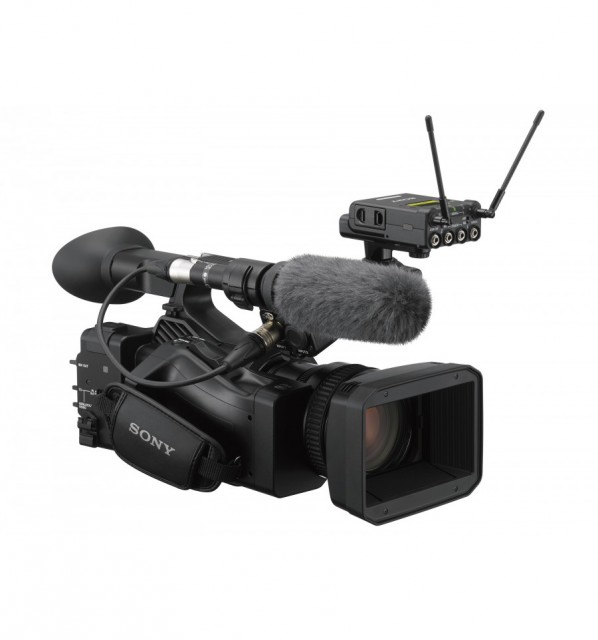

Dual Multi-Interface (MI) Shoe
MI Shoe provides power, signal connections and coordinated on/off switching to compatible Sony accessories. For example, you can connect and control Sony wireless microphone systems such as the UWP-D11 or UWP-D12 or attach the HVL-LBPC light *Connectors at front and back of camcorder maximise operational flexibility.

*Accessories sold separately. HVL-LBPC light does not draw power from PXW-Z280.

Dual XLR and 4 Channel Audio
The PXW-Z280 offers superior professional audio capabilities with independent volume dials enabling precision control of external audio inputs, including an MI-shoe attached microphone.

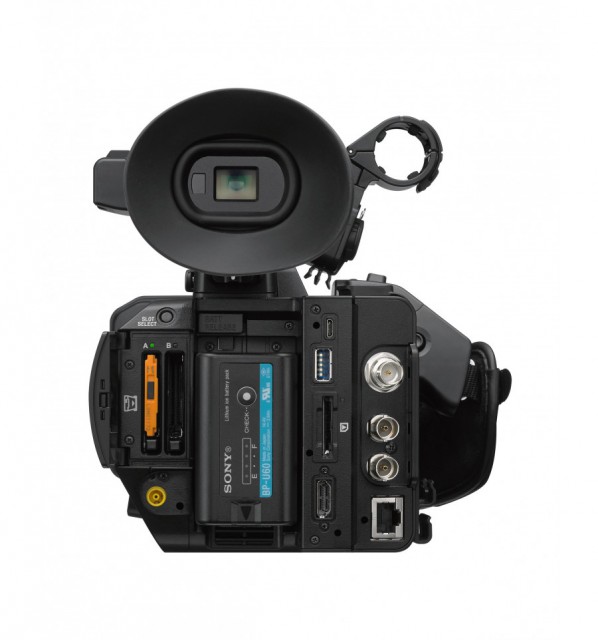

Dual SxS media slots
The camcorder is equipped with two SxS memory card slots, which can record in Simul, Relay or Back up mode. Simul mode permits simultaneous recording to two memory cards, including simultaneous recordings of MPEG HD exFAT and UDF recordings, ideal for archival purposes. Relay mode automatically switches recording from the first to the second memory card when the first is full to extend recording times. In Back up mode, users can set up the two Start/Stop buttons on the PXW-Z280, one on the grip and one on the camcorder body, to independently start and stop recording on different memory cards while recording in Simul mode.

Networked for high mobility

  • The PXW-Z280 comes with 5GHz* and 2.4GHz Wi-Fi as standard – simply turn on and log onto your preferred network to enable a host of advanced wireless production features:

          *5GHz support dependent on country/regional regulation

  • IBM Cloud Video® Direct Streaming allows you to share scenes as they happen with high quality picture and sound without a switcher
  • High quality Sony QoS Streaming to Network RX station *Sold separately and XDCAM air allows images to be streamed live from the camcorder for viewing at a remote location
  • FTP Transfer allows content files recorded with MPEG HD 422/420 proxy feature and other content files shot in XAVC (QFHD/FHD) to be sent over the internet for remote storage on an FTP server even while shooting. In case of signal interruption, the system will automatically resume as soon as connection restored
  • Trimming function is available for both proxy and PGM without need for a PC. Any clip can have its start and endpoints selected to eliminate time wasted transferring unnecessary content
  • XDCAM air can upload proxy footage to the cloud from multiple camera operators in the field, so editing can start immediately. Uploaded content can be accessed securely from any location. News teams can even start logging clips while shooting’s still going on, saving even more valuable time when a story’s breaking
  • Wi-Fi/NFC (Near Field Communication) with Content Browser Mobile™ allows the PXW-Z280 to be remotely controlled from a smartphone or tablet computer (iOS 9.0 – 10.3 or Android 4.4 through 7.1) via a Wi-Fi connection. One-touch authentication is also possible with smartphones that offer NFC connectivity
  • Wired LAN port allows you to connect the PXW-Z280 to the Internet with a standard Ethernet cable, allowing files to be streamed or transferred by FTP

          *The Content Browser Mobile™ application can be downloaded from the Google Play Store or App Store. Wi-Fi operation cannot be guaranteed with all smartphones and tablet computers

High performance, proven recording formats

PXW-Z280 offers complete production flexibility with built-in support for a wide variety of production formats.

High quality XAVC Intra and XAVC Long GOP recordings
XAVC technology is based on the H.264 standard, which provides an exceptionally robust and efficient compression technology. XAVC Intra (frame) compression means that every frame is encoded independent of the other frames – providing a better quality picture, without compromises. XAVC Long GOP applies compression across multiple frames – reducing file sizes, which can make for fast ingest and editing as well as providing budget savings on recording media. The XAVC codec adopts 10-bit sampling for high definition recording with rich tonal expression.

Broadcast-standard MPEG HD422 and MPEG HD
High-quality MPEG HD422 50 Mbps is fully compliant with the latest EBU recommendations for long-form broadcast production and is widely accepted in broadcasting stations and production houses. This recording capability makes PXW-Z280 ideal for a wide range of different applications, including newsgathering and documentary production.

DVCAM at 25 Mbps in MXF file format
Many broadcasters and production houses still utilise the proven DVCAM format and PXW-Z280 provides support at the flick of a switch.

OBSAH BALENIA

  • Lens hood, Pre-installed to the Camcorder
  • EVF eyecup
  • Battery pack BP-U30
  • AC Adapter/charger BC-U1A
  • Power code
  • USB cable
  • Shoulder strap
  • Warranty booklet
  • "Before Using this Unit"
  • CDROM "Operating instructions"

ŠPECIFIKÁCIE


General

Mass
Approx. 2.6 kg (body)
Approx. 5 lb 11.7 oz (body)
Approx. 3.0 kg (with lens hood, eyecup, BP-U30 battery, a SxS memory card)
Approx. 6 lb 9.8 oz (with lens hood, eyecup, BP-U30 battery, a SxS memory card)

Dimensions (W x H x D)
178.4 × 202.0 × 426.3 mm (With the accessories (lens hood, eyecup), excluding the grip belt and including the projecting parts)
7 1/8 x 8 x 16 7/8 inches (With the accessories (lens hood, eyecup), excluding the grip belt and including the projecting parts)

Power Requirements
DC In: 12 V,
Battery: 14.4 V

Power Consumption
Approx. 24 W
(while recording with LCD Off, EVF On when the external device connector is not used.)
Approx. 31 W
(while recording with LCD On, EVF On when the external device connector is used.)

Operating Temperature
0°C to 40°C
32°F to 104°F

Storage Temperature
-20°C to +60°C
-4°F to +140°F

Battery Operating Time
Approx. 1 hours, 5 minutes with BP-U30 battery
(while recording with LCD Off, EVF On when the external device connector is not used.)
Approx. 2 hours, 10 minutes with BP-U60 battery
(while recording with LCD Off, EVF On when the external device connector is not used.)
Approx. 3 hours, 15 minutes with BP-U90 battery
(while recording with LCD Off, EVF On when the external device connector is not used.)

Recording Format (Video)

XAVC-I QFHD mode:
MPEG-4 AVC/H.264, CBG, Max.600 Mbps
XAVC-I HD mode:
MPEG-4 AVC/H.264, CBG, Max.222 Mbps

XAVC-L QFHD mode:
VBR, maximum bit rate 150Mbps, MPEG-4 H.264/AVC
XAVC-L HD 50 mode:
VBR, maximum bit rate 50Mbps, MPEG-4 H.264/AVC
AVC-L HD 35 mode:
VBR, maximum bit rate 35Mbps, MPEG-4 H.264/AVC
XAVC-L HD 25 mode:
VBR, maximum bit rate 25Mbps, MPEG-4 H.264/AVC

MPEG HD422 mode:
CBR, maximum bit rate 50Mbps, MPEG-2 422P@HL
MPEG HD420 HQ mode:
VBR, maximum bit rate 35Mbps, MPEG-2 MP@HL

DVCAM mode:
CBR, 25Mbps, DVCAM

Recording Format (Audio)

XAVC-I mode
:
LPCM 24-bit, 48 kHz, 4 channels:

XAVC-L mode
:
LPCM 24-bit, 48 kHz, 4 channels:

MPEG HD422 mode
:
LPCM 24-bit, 48 kHz, 4 channels:
MPEG HD420 HQ mode:
LPCM 16-bit, 48 kHz, 4 channels:

DVCAM mode
:
LPCM 16-bit, 48 kHz, 4 channels

Recording Frame Rate

XAVC-I QFHD mode:
3840 x 2160/59, 94p, 50p, 29.97p, 23.98p, 25p
XAVC-I HD mode:
1920 x 1080/59, 94p, 59.94i, 50p, 50i, 29.97P, 23.98P, 25P 1280x720/59.94P, 50P

XAVC-L QFHD 150 mode:
3840 x 2160/59.94P, 50P, 29.97P, 23.98P, 25P
XAVC-L HD 50 mode:
1920 x 1080/59.94P, 50P, 59.94i, 50i, 29.97P, 23.98P, 25P 1280 x 720/59.94P, 50P
XAVC-L HD 35 mode:
1920 x 1080/59.94P, 50P, 59.94i, 50i, 29.97P, 23.98P, 25P

Recording Frame Rate - Continued
XAVC-L HD 25 mode:
1920 x 1080/59.94i, 50i

MPEG HD422 mode:
1920 x 1080/59.94i, 50i, 29.97P, 23.98P, 25P
1280 x 720/59.94P, 50P, 29.97P, 23.98P, 25P
MPEG HD420 HQ mode:
1920 x 1080/59.94i, 50i, 29.97P, 23.98P, 25P
1440 x 1080/59.94i, 50i, 29.97P, 23.98P, 25P
1280 x 720/59.94P,50P

DVCAM mode:
720 x 480/59.94i, 29.97PsF
720 x 576/50i, 25PsF

Recording/Playback Time

XAVC-I QFHD mode
When using SBP-128B (128 GB):
Approx. 22 minutes
XAVC-I HD mode
When using SBP-128B (128 GB):
Approx. 57 minutes

XAVC-L QFHD 150 mode
When using SBP-128B (128 GB):
Approx. 86 minutes
XAVC-L HD 50 mode
When using SBP-128B (128 GB):
Approx. 230 minutes
XAVC-L HD 35 mode
When using SBP-128B (128 GB):
Approx. 310 minutes

Recording/Playback Time — Continued
XAVC-L 25 mode
When using SBP-128B (128 GB):
Approx. 420 minutes

MPEG HD422 mode
When using SBP-128B (128 GB):
Approx. 215 minutes
MPEG HD420 HQ mode
When using SBP-128B (128 GB):
Approx. 330 minutes

When using SBP-128B (128 GB):
Approx. 405 minutes

Recording Format (Proxy Audio)
XAVC Proxy: AAC-LC, 128 kbps, 2 channels

Recording Format (Proxy Video)
XAVC Proxy: AVC/H.264 Main Profile 4:2:0 Long GOP, VBR
1920 x 1080, 9Mbps
1280 x 720, 9Mbps
1280 x 720, 6Mbps
640 x 360, 3Mbps
480 x 270, 1Mbps
480 x 270, 0.5Mbps

Lens

Lens Mount
Fixed

Zoom Ratio
17x (optical), servo/manual

Focal Length
f = 5.6 - 95.2 mm
(35mm equivalent: 30.3 - 515 mm)

Iris
F1.9 - F16 and close
auto/manual selectable

Focus
800 mm to ? (Macro Off),
50 mm to ? (Macro On, Wide),
800 mm to ? (Macro On, Tele)
AF/MF/Full MF selectable

Image Stabilizer
On/Off selectable, shift lens

Filter Diameter
M77 mm, pitch 0.75mm

Camera Section

Imaging Device (Type)
1/2 type back-illuminated Exmor R 3CMOS sensor

Effective Picture Elements
3840 (H) x 2160 (V)

Optical System
F1.6 prism system

Built-in Optical Filters
ND filters
OFF: CLEAR
1: 1/4ND
2: 1/16ND
3: 1/64ND
Linear variable ND (Approx. 1/4ND to 1/128ND)

Sensitivity (2000 lx, 89.9% reflectance)
F12 (typical, 1920 x 1080/59.94p mode)
F13 (typical, 1920 x 1080/50p mode)
F12 (typical, 3840 x 2160/59.94p, High Sensitivity Mode)
F13 (typical, 3840 x 2160/50p, High Sensitivity Mode)

Minimum Illumination
0.0013lx (typical)
(1920 x 1080/59.94i mode, F1.9, +42 dB gain, High Sensitivity Mode, with 64 frame accumulation)

S/N Ratio
63 dB (Y) (typical)

Horizontal Resolution
2,000 TV lines or more (3840 x 2160p mode)
1,000 TV lines or more (1920 x 1080p mode)

Shutter Speed
1/24 sec to 1/8,000 sec

Slow Shutter (SLS)
2, 3, 4, 5, 6, 7, 8, 16, 32, and 64-frame accumulation

Slow and Quick Motion Function


2160P: 1-60 fps
1080P: 1-60 fps
720P: 1-60 fps

1080P: 1-30 fps
720P: 1-60 fps

1080P: 1-30 fps
720P: 1-60 fps

White Balance
Preset (3200K), Memory A,
Memory B/ATW

Gain
-3, 0, 3, 6, 9, 12, 18 dB, 42dB (Turbo Gain ON), AGC

Gamma Curve
Selectable

Input/Output

Audio Input
XLR-type 3-pin (female) (x2), line/mic/mic +48 V selectable
LINE:+4, 0, -3dBu/10k?
MIC:-80dBu to -30dBu /3k?
(0 dBu=0.775 Vrms)

Video Output
BNC (x1), HD-Y/ HD-SYNC/Composite
1.0 V p-p, 75 ?
(switchable to Genlock in)

Audio Output
Integrated into Multi/Micro USB jack(x1)

SDI Output
BNC (x1), 12G/3G/HD/SD selectable

Timecode Input
BNC (x1) (switchable to TC out)
0.5V-1.8Vp-p, 3.3k?

Timecode Output
BNC (x1) (switchable to TC in)
1.0 V p-p, 75 ?

Genlock Input
BNC (x1) (switchable to Video out) 1.0 Vp-p, 75?

USB
USB device, Multi/Micro USB jack (x1)
Host: USB 3.0/2.0 type A(x1)
USB 2.0 type A(x1)

Headphone Output
Stereo mini jack (x1)
-16dBu 16?

Speaker Output
Monaural
Output: 500 mW

DC Input
DC jack (x1)

Remote
Stereo mini-minijack (?2.5 mm)

HDMI Output
Type A (x1)

Wired LAN
RJ-45 (x1), 1000BASE-T, 100BASE-T, 10BASE-T

Monitoring

Viewfinder
0.5 type (1.3 cm)
Approx 2.36 M dots

LCD
3.5 type (8.8cm)
Approx. 1.56M dots

Built-in Microphone

Built-in Microphone
Omni-directional stereo electret condenser microphone

Media

Type
ExpressCard/34 slot (x2)

Wi-Fi/NFC

Supported Format
IEEE 802.11 a/b/g/n/ac

Frequency Band
2.4 GHz bandwidth
5.2/5.3/5.6 GHz bandwidth*

Security
WEP/WPA-PSK/WPA2-PSK

NFC
NFC Forum Type 3 Tag compliant



Parametre

Parametre

Výrobca: SONY
Kategória: Kompaktné kamery

Hlavné parametre

Veľkosť snímača kamery1/2"
RozlíšenieUHD
RozlíšenieFull HD
Rozlíšenie4K
Rozlíšenie4K UHD
Optický Zoom17x
Bajonetintegrovaný objektív
VýstupSDI
Výstup12G SDI
Výstup3G SDI
Výstup6G SDI
VýstupGenlock
VýstupTimecode
VýstupHD-SDI

Ostatné parametre

Vyhotovenie kameryhandycam
Formát záznamuXAVC-Intra
Formát záznamuXAVC-Long
Formát záznamuMPEG HD
Formát záznamuMPEG
Formát záznamuDV
FPS4K 60fps
FPSUHD 30fps
FPSHD 60fps
FPSUHD 60fps
FPSHD 50fps
FPSUHD 50fps
FPSUHD 25fps
Min. ohnisková vzdialenosť30mm
Max. ohnisková vzdialenosť515mm
Typ médiaSxS
Typ médiaSD karta
Typ batérieBP-U
Farebná hĺbka10 bit
Priemer filtra77mm
Ďalšie funkcieNFC
Ďalšie funkcieTimecode
Ďalšie funkcieWiFi
Ďalšie funkcieND filtr
Ovládací protokolLANC
PRÍSLUŠENSTVO (14)

PRÍSLUŠENSTVO (14)

Sony UWP-D27 K33

  • Doprava zdarma
  • Top produkt
Kit Sony UWP-D27 (K33) obsahuje 2x vysielač UTX-B40, 1x dvojkanálový prijímač URX-P41D
1 464 €
Skladom 2 ks

Swit LB-SU98

  • -10 %
ŠPECIÁLNA AKCIA: -10% končí za: 94d: 13h: 46m
Doplnkový nabíjateľný Li-Ion akumulátor (14,4V) pre XDCAM a XDCAM EX kamery s vizuálnou
236.7 €
Skladom 3 ks

MxM Express MxM Card (adapter only)

Samotný adaptér MxM na SDHC karty.
68.4 €
Skladom > 5 ks

Azden SGM-250P

Azden SGM-250P je shotgun elektret kondenzátorový mikrofón napájaný fantómovým n
310 €
Skladom 2 ks

CONST ST-LBPS900

CONST ST-LBPS900 je kompaktné kamerové LED svetlo s nastaviteľným svetelným výkonom
149 €
Skladom 2 ks

Sony UWP-D27 K21

  • Doprava zdarma
Kit Sony UWP-D27 obsahuje 2x vysielač UTX-B40, 1x dvojkanálový prijímač URX-P41D
1 464 €
Skladom 1 ks

2-pack Sony SxS 64GB

  • Doprava zdarma
2-pack kariet Sony SxS-1 G1C je navrhnutý pre stabilné a spoľahlivé nahrávanie 4k
720 €
Detail

Sony BC-U1

SONY BC-U1 je samostatná nábíjačka/zdroj na XDCAM EX batérie typu BP-U30/U60/U90
144 €
Skladom 1 ks

Sony UWP-D21

  • Doprava zdarma
Nová Hybrid Digital Processing UWP-D séria bezdrôtových mikrofónov od Sony prináša
586 €
Skladom 1 ks

Sony SMAD-P5

Adaptér SMAD-P5 Multi Interface Shoe (MI Shoe) umožňuje bezdrôtové pripojenie zvukového
40.8 €
Detail

Sony BC-U2

SONY BC-U2 je samostatná dvoj-nábíjačka/zdroj na XDCAM EX batérie typu BP-U30/U6
324 €
Detail

Sony ECM-VG1

Sony ECM-VG1 je elektretový kondenzátorový mikrofón so smerovou charakteristikou.
207 €
Detail

Sony BP-U70

Lithium-ion 72 Wh batéria určená pre Sony kamery kompatibilné s typom batérií BP-U
300 €
Detail

HPRC 2600W for Sony PXW-Z280

  • Doprava zdarma
HPRC 2600W for Sony PXW-Z280 je ľahký, nárazu odolný a vodotesný kufor, ktorý bol
471.6 €
Detail
ALTERNATÍVY (1)
