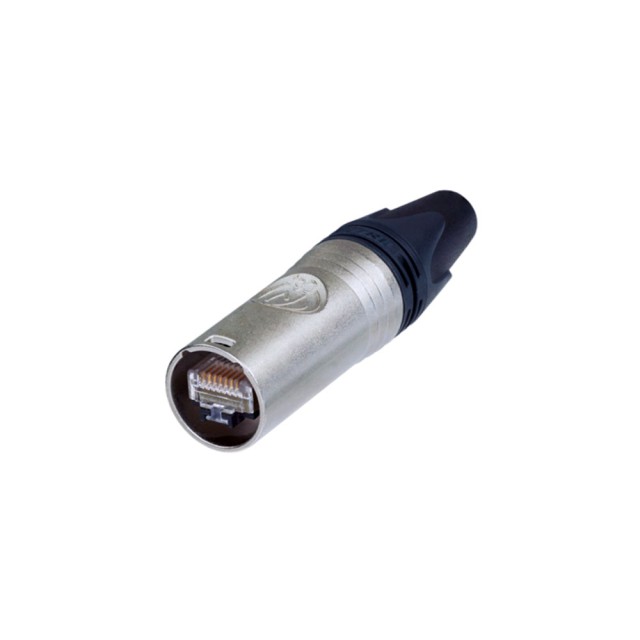

Neutrik etherCON CAT6A konektor NE8MX6

etherCON CAT6A cable connector self-termination, for insulation diameter > 1.1 mm, nickel plating

Viac informácií

15.7 € s DPH 13.08 € bez DPH
-+
Osobné prevzatie: 04. 12. od 09:00
Odošleme: 04. 12.
Skladom > 5 ks
Bratislava > 5 ks
Popis produktu

Popis produktu

etherCON CAT6A cable connector self-termination, for insulation diameter > 1.1 mm, nickel plating

The set NE8MX6 consists of a cable plug carrier offering a robust metal shell, proven Neutrik chuck-type strain relief and a CAT6A compliant RJ45 plug. The set is suitable for a cable diameter range of 7 mm to 9.5 mm and wire gauge of AWG24/1 - AWG22/1 (solid) or AWG24/7 - AWG22/7 (stranded).

  • Features & Benefits
    Ruggedized connector with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
  • PoE++ compliant according to 802.3bt Type4
  • IP65 protected when mated with NE8FDX-P6-W or NE8FDX-Y6-W
  • Rugged latch lock system million fold provenIntermateable with the existing etherCON CAT5 range
  • Unique Neutrik chuck-type strain relief
Technical Information

Title - NE8MX6
Gender - male
Dielectric strength - 1 kVdc
Insulation resistance - > 0.5 GΩ
Rated current per contact - 1.5 A
Transmission performance - CAT6A, acc. TIA/EIA rating
                                             CAT6A, acc. IEC/ISO/EN rating
Power over - Ethernet PoE++ acc. IEEE 802.3bt
Cable O.D. - 7.0 - 9.5 mm
Lifetime - > 1000 mating cycles
Wiresize - AWG 24/1 - AWG 22/1 (solid)
                 AWG 24/7 - AWG 22/7 (stranded)
Locking device - Latch lock
Insulation diameter - 1.1 - 1.6 mm
Bushing - PA / PU
Contact plating - Au
Shell - Zinc diecast (ZnAl4Cu1)
Shell plating - Nickel
Strain relief - POM
Protection class - IP 65 (in combination with NE8FDX-*6-W)
Temperature range - -40 °C to +70 °C
Parametre

Parametre

Výrobca: Neutrik
Kategória: Dátové konektory

Hlavné parametre

Typ konektoraRJ45

Ostatné parametre

PrevedenieNa kábel
PrevedenieSamec
