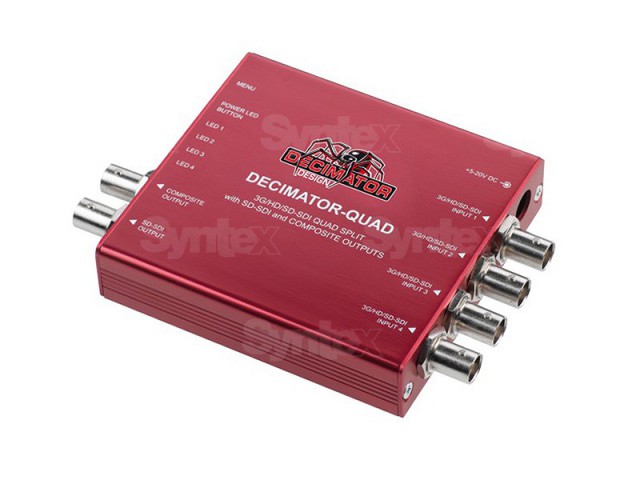

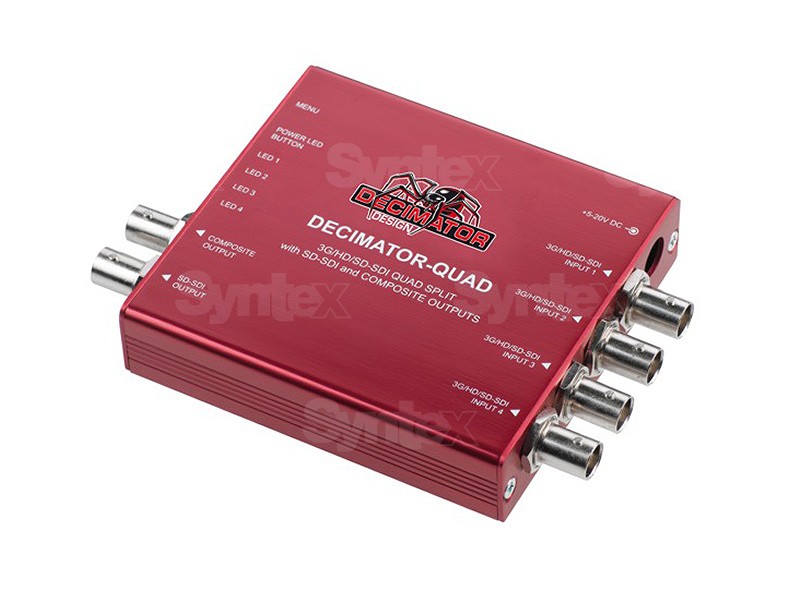

Miniatúrny 3G/HD/SD-SDI "4 to 1" Quad Split alebo Down Converter so "4 to 1" vstupovým multiplexerom.
Features:
- Your choice of either a NTSC or PAL output
- Linked SD-SDI and Composite Outputs
- 4 x 3G/HD/SD-SDI inputs with auto-detection (26 formats supported in total)
- Each quadrant is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
- Variable aspect ratios per quadrant
- All 4 inputs can be displayed simultaneously on a single output
- Full-screen mode allowing any of the 4 inputs to be selected for output
- In Full-screen mode the selected 3G/HD-SDI input is down-converted to either NTSC or PAL and a SD-SDI input is passed through untouched
- An extensive selection of user controllable functions via an easy to use rotary encoder for menu selection. LEDs and a push button can then be used for status and control
- Locking DC power socket
- Mounting bracket included
