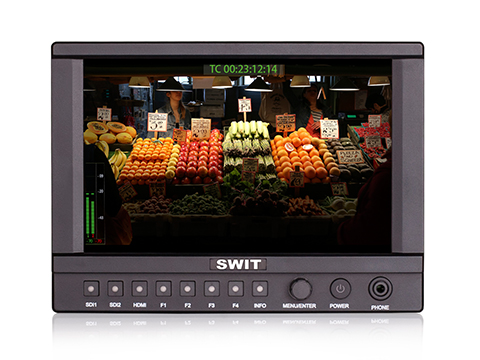

SWIT S-1073H je 7" 4K/HD LCD monitor s rozlíšením 1920×1200 a podporou 2K/3G/HD/SD-SDI na SDI vstupe (+loop výstup) a 4Kp60 na HDMI vstupe (+loop výstup).
7-inch Full HD 4K-HDMI LCD Monitor
TFT panel with LED backlight
The S-1073H adopts a 7-inch LCD panel with LED backlight, The native resolution is Full HD 1920×1200, contrast 1000:1, and viewing angle is Horizontal: 160° / Vertical: 160°
3G-SDI?4K-HDMI
S-1073H monitor supports:
2K/3G/HD/SD-SDI input × 2
2K/3G/HD/SD-SDI loop output × 1
HDMI 2.0 (4K60p) input × 1
HDMI 2.0 (4K60p) loop output × 1
3.5mm SDI/HDMI embedded audio output
User LUT cube import
S-1073H monitor has built-in camera logs to Rec 709 conversion LUTs, including Log-C, C-log, S-log2, S-log3, V-log, J-log1, RedLogFilm.
You can also import own 3DLUTs to monitor by USB stick, support 17x17x17 3DLUT cube files.
Up to 16-ch meters with alert and select output
S-1073H supports SDI-16ch and HDMI-2ch embedded audio meters display, with marks and audio abnormal alert info. Users can also select any 2 channels audio to output via 3.5mm socket or speakers. The audio meter pattern position can be selected from one of four corners, and you can select to display only 2 channels, 8 channels, and full 16 channels. Also scale markers, alert info, and translucent of the audio meter pattern are selectable.
S-1073H supports on-screen TALLY display, and the TALLY control signal inputs via GPI(RS485) port on the rear panel of the monitor.
V-mount / Gold mount / DV mount
S-1073H supports DC 6.5-36V input via a 5.5mm lockable DC socket, and can install SWIT S-7006 series V-mount / Gold mount / DV battery plates to power:
Model of plate | Compatible batteries |
S-7006A | Gold mount (Antonbauer) batteries |
S-7006S | V-mount batteries |
S-7006F | SONY NP-F970/770, SWIT S-8972, S-8970 |
S-7006U | SONY BP-U60/U30, SWIT S-8U63, S-8U93 |
S-7006D | Panasonic D54/D28, VW-VBD58, SWIT S-8D58, S-8D98,S-8D62 |
S-7006B | Panasonic VW-VBG6, SWIT S-8BG6 |
S-7006V | JVC BN-VF823, SWIT S-8823 |
S-7006I | SSL-JVC50, SWIT S-8i50 |
S-7006C | Canon BP-945/970G, SWIT S-8845, S-8945 |
S-7006E | Canon LP-E6, SWIT S-8PE6 |
The monitor provides a standard USB port on the rear panel, for firmware upgrade. Users can download the latest firmware file to a USB stick, and directly insert into S-1073H monitor to upgrade, without PC connection.
For outdoor using, the S-1073H provides a sun hood that is foldable designed and magnetic installation to the monitor.
Simple package includes:
Input Video Formats
S-1073H supports the following input video formats:
HDMI | 4096×2160p (60 / 50 / 30 / 25 / 24) | |
3840×2160p (60 / 50 / 30 / 25 / 24) | ||
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | ||
1080i (60 / 59.94 / 50) | ||
720p (60 / 59.94 / 50) | ||
480i/ 576i / 480p / 576p | ||
SDI | SMPTE 2048-2 | 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 2048×1080i (60 / 59.94 / 50) |
SMPTE-425M | 1080P (60 / 59.94 / 50) | |
SMPTE-274M | 1080i (60 / 59.94 / 50) | |
1080p (30 / 29.97 / 25 / 24 / 23.98) | ||
SMPTE-RP211 | 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
SMPTE-296M | 720p (60 / 59.94 / 50) | |
SMPTE-125M | 480i (59.94) | |
ITU-R BT.656 | 576i (50) |
Výrobca: | Swit |
Kategória: | Štúdiové monitory |
Uhlopriečka (Monitory) | 7" |
Vstupy monitora | HDMI |
Vstupy monitora | SDI |
Vstupy monitora | 4K HDMI |
Napájanie monitora | 12V dutinkový |
Svietivosť | 400cd/m2 |
Rozlišenie panela | 1920x1200 |
Ďalšie funkcie | Tally |
High Brightness | Nie |
