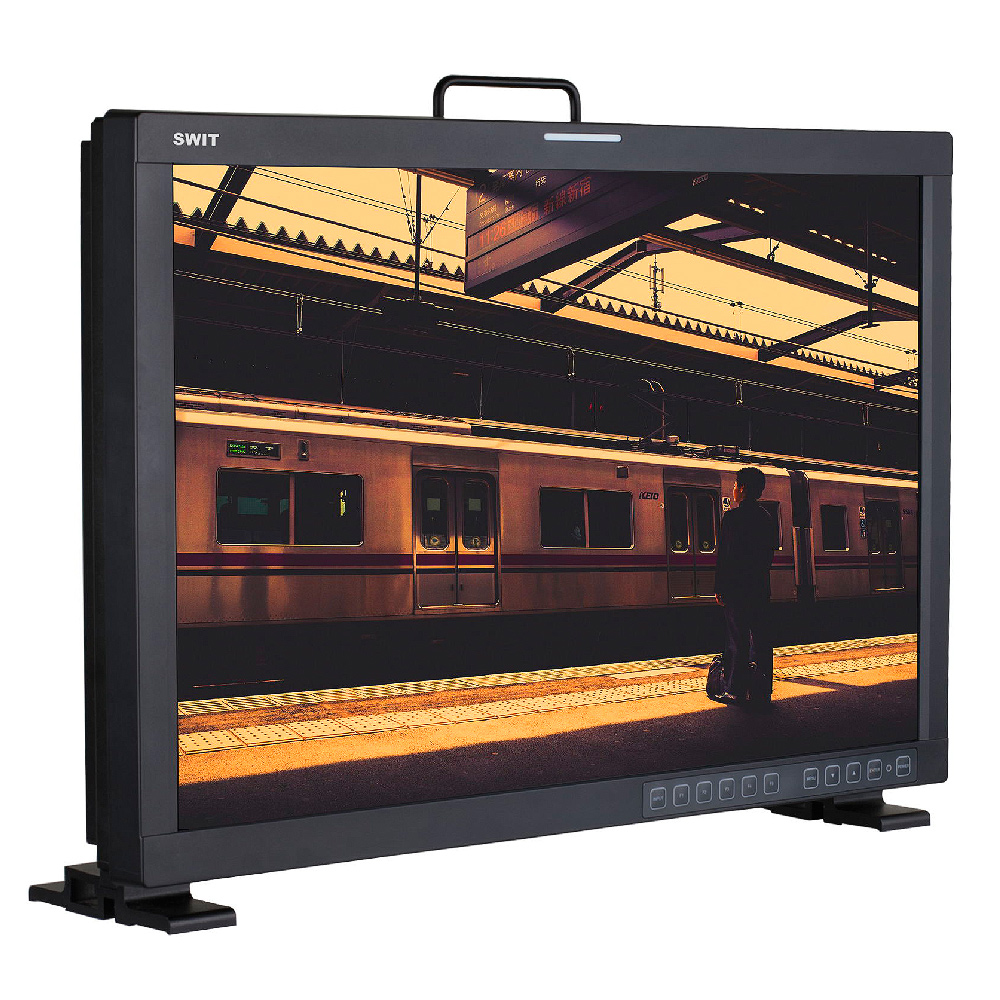

Swit Monitor FM-24DCI

SWIT FM-24DCI je 24” DCI-P produkčný monitor s 10-bit LCD panelom s rozlíšením 1920x1200 pixelov, interným 12-bit spracovaním a 100% pokrytím DCI-P3. Monitor obsahuje 3G/HD/SD-SDI a HDMI vstup a množstvo ďalších funkcií (Waveform, Vektoroskop, Histogram, 16-kanálový audio moniotring, zobrazenie časového kódu a pod.).

SWIT FM-24DCI je 24” DCI-P produkčný monitor s 10-bit LCD panelom s rozlíšením 1920x1200 pixelov, interným 12-bit spracovaním a 100% pokrytím DCI-P3. Monitor obsahuje 3G/HD/SD-SDI a HDMI vstup a množstvo ďalších funkcií (Waveform, Vektoroskop, Histogram, 16-kanálový audio moniotring, zobrazenie časového kódu a pod.).

Základné vlastnosti DCI monitora SWIT FM-24DCI:

• 24-inch, 1920×1200, 10-bit LCD, 12-bit process, 100% DCI-P3
• 3G/HD/SD-SDI, HDMI monitoring
• Built-in multi cameras De-log LUTs and DIT LUTs upload by USB
• SDI 1/2 Pic-in-Pic and Pic-by-Pic display
• Waveform / Vector / Histogram / 16-ch Audio meters / Timecode
• Peaking / Focus assist / Exposure assist / Zebra / Blue only
• Anamorphic de-squeeze / Multiple markers

Input/Output Interfaces

• 3G-SDI, HDMI
• FM-24DCI monitor supports:
• 3G/HD/SD-SDI input × 2
• 3G/HD/SD-SDI loop output × 2
• HDMI 1.3 input × 1
• Ethernet RJ45 × 1
• USB-A LUT/Firmware input × 2

SDI 1/2 PIP and PBP

FM-24DCI supports 2x SDI Pic-in-Pic or Pic-by-Pic display mode.
Under Pic-in-Pic mode, the sub input window can be set to bottom-left or bottom-right, and size adjustable.

Built-in De-log 3DLUTs

• DIT user 3DLUT cube upload
• FM-24DCI provides multiple De-log 3DLUTs to convert log mode to REC709 for all major cameras, includes.
• ARRI LOG R709
• RED RLF RG3
• SONY SL2 LC709A
• SONY SL3C L709A
• Pana V-Log V709
• Canon CinCL1 WDR
• Canon CinCL2 WDR
• BMD CC FILM V
• BMD PC FILM V2
• And supports 4x user 3DLUT cubes or calibrated 3DLUT cube uploaded by USB stick.

Closed Caption

• FM-24DCI supports closed caption of 608(708), 608(ANC) and 608(VBI) standards.
• 2 AUTO modes are provided for easy setup:
• Auto1: Set to 608(VBI) for SD-SDI and 608(708) for HD-SDI;
• Auto2: Set to 608(ANC) for SD-SDI and 608(708) for HD-SDI

Webserver IP Remote Control

FM-24DCI supports webserver remote control by Ethernet LAN connection. Use computer web browser to open the monitor control panel, and select input sources, adjust picture parameters, set up video / audio functions and assign function keys, etc, without install any APP.

Waveform / Vector scope

FM-24DCI supports Waveform (LUMA) and Vector scope (75% or 100%) display. The patterns can be switched on/off individually, display position (Left/Right) selectable.

Embedded audio monitoring

• Up to 16-ch meters
• The monitor can display 16-ch embedded audio meters.
• The display mode can be:
• 1. CH1-2
• 2. CH1-16
• 3. CH1-4 and CH5-8
• 4. CH1-4 and CH9-12
• 5. CH1-4 and CH13-16
• 6. CH5-8 and CH9-12
• 7. CH5-8 and CH13-16
• 8. CH9-12 and CH13-16

Function Keys Assign

5 User Presets of Function Keys restore. There’re 5 F-keys to assign different functions, to quickly switch on/off the functions.

The available functions are:

Anamorphic de-squeeze

• Enables de-squeeze the image from a camera utilizing anamorphic lens, Aspect Formats:
• 16x9,
• 4x3,
• x1.3 Anamorphic De-Squeeze
• x2.0 Anamorphic De-Squeeze
• x2.0 MAG Anamorphic De-Squeeze

Power Input and Output

FM-24DCI provides a V-mount battery plate, and supports 12-17V 4-pin XLR input and 100-240V AC input.
FM-24DCI also provide 2x USB 5V/1A output and 1x 2-pin LEMO socket to output battery power.
