Swit CM-S73H

7" Super Bright SDI/HDMI LCD Monitor 3000nit

Viac informácií

ŠPECIÁLNA AKCIA: -30%
1 065.6 € 750 € s DPH 625 € bez DPH
-+
Dostupnosť
Praha skladom do 2 dní, Bratislava 1 ks
Výrobca
Doprava zdarma pri nákupe tohto produktu
Kód tovaru:
KAT-16788
Pridať do porovnania
Popis produktu

Popis produktu

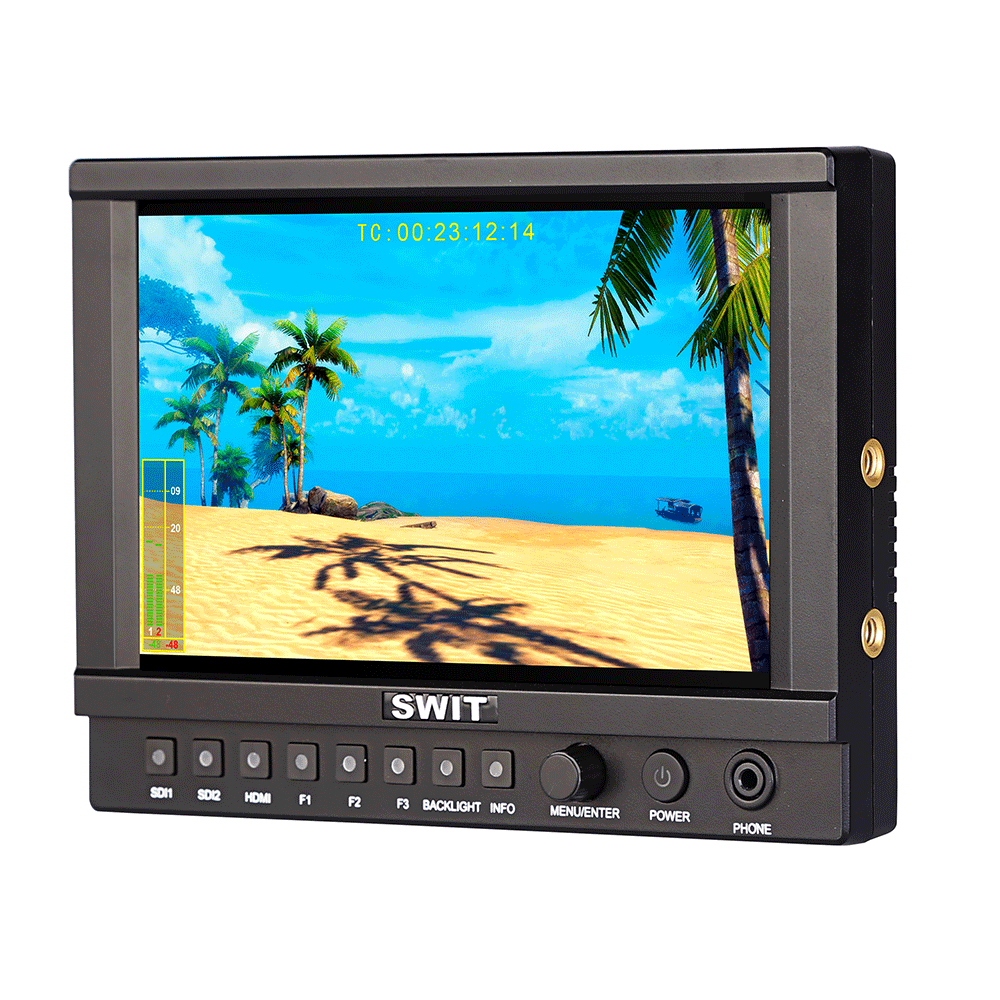

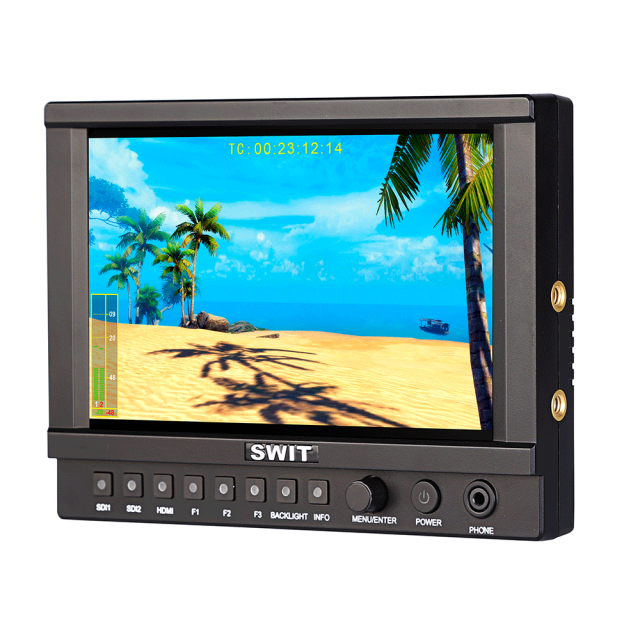

7" Super Bright SDI/HDMI LCD Monitor 3000nit

7-inch 3000nit Super Bright LCD Monitor
◆ 7” non-glaring LCD, 1920×1200 resolution
◆ 3000nit super high bright
◆ HDR capable: PQ / HLG / S-log3
◆ 2K/3G/HD/SD-SDI input & loop output
◆ HDMI 2.0 (4K60p) input & loop output
◆ 16-ch embedded audio meters with alert
◆ Select any 2 audio channels to output
◆ 9 steps quick zoom-in and mapping
◆ Focus assist with precision adjustment
◆ Build-in multi-camera logs to Rec.709
◆ User 3DLUT cube file import by USB
◆ On-screen TALLY display and GPI
◆ Zebra stripes, False color, R/G/B/Mono
◆ H/V delay, AFD, Timecode display
◆ Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
◆ V/Gold mount or various DV plates option
◆ USB firmware upgrade

CM-S73H supports the following input video formats:



Parametre

Parametre

Výrobca: Swit
Kategória: Monitory na kameru

Hlavné parametre

Svítivost3000cd/m2
Velikost7"
Vstupy monitoraHDMI
Vstupy monitoraSDI
Vstupy monitora4K HDMI
Vstupy monitora3G-SDI

Ostatné parametre

Dalšie funkcieHDR
Dalšie funkcieTally
High BrightnessÁno
OBSAH BALENIA

  • Sun hood
  • D-tap to lockable Pole-tap Cable
  • S-7006 battery plate (S/A/U/F/D/B/V/I/C/E selection)
  • Cold shoe to 1/4" Ball head


ŠPECIFIKÁCIE

LCD Performance

Size

7 inches

Display area

151.2×94.5mm

Resolution

1920×1200

Aspect ratio

16:9 (4:3 adjustable)

Brightness

Max 3000cd/m2

Contrast

1200:1

Color

16.77 million colors

Viewing angle

Horizontal: 160°; Vertical: 160°

Input

BNC ×2

2K/3G/HD/SD-SDI input

HDMI-A ×1

HDMI 2.0 input

USB ×1

Firmware upgrade

RS485 ×1

GPI (Tally) input

Output

BNC ×1

2K/3G/HD/SD-SDI loop output

HDMI-A ×1

HDMI 2.0 loop output

3.5mm ×1

SDI, HDMI embedded audio output

Video Format

SDI

2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

2048×1080i (60 / 59.94 / 50)
1080p (60 / 59.94 / 50)
1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 23.98)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94)
576i (50)

HDMI

4096×2160p (60 / 50 / 30 / 25 / 24)
3840×2160p (60 / 50 / 30 / 25 / 24)
480i/ 576i / 480p / 576p
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

General

Input voltage

DC / battery 6.5V-17V

Power consumption

≤26W

Working temperature

-10°C~+50°C

Working humidity

10%~90%

Storage temperature

-15°C~+60°C

Storage humidity

10%~90%

Dimensions

187×137×41mm

Net weight (main body)

500g
