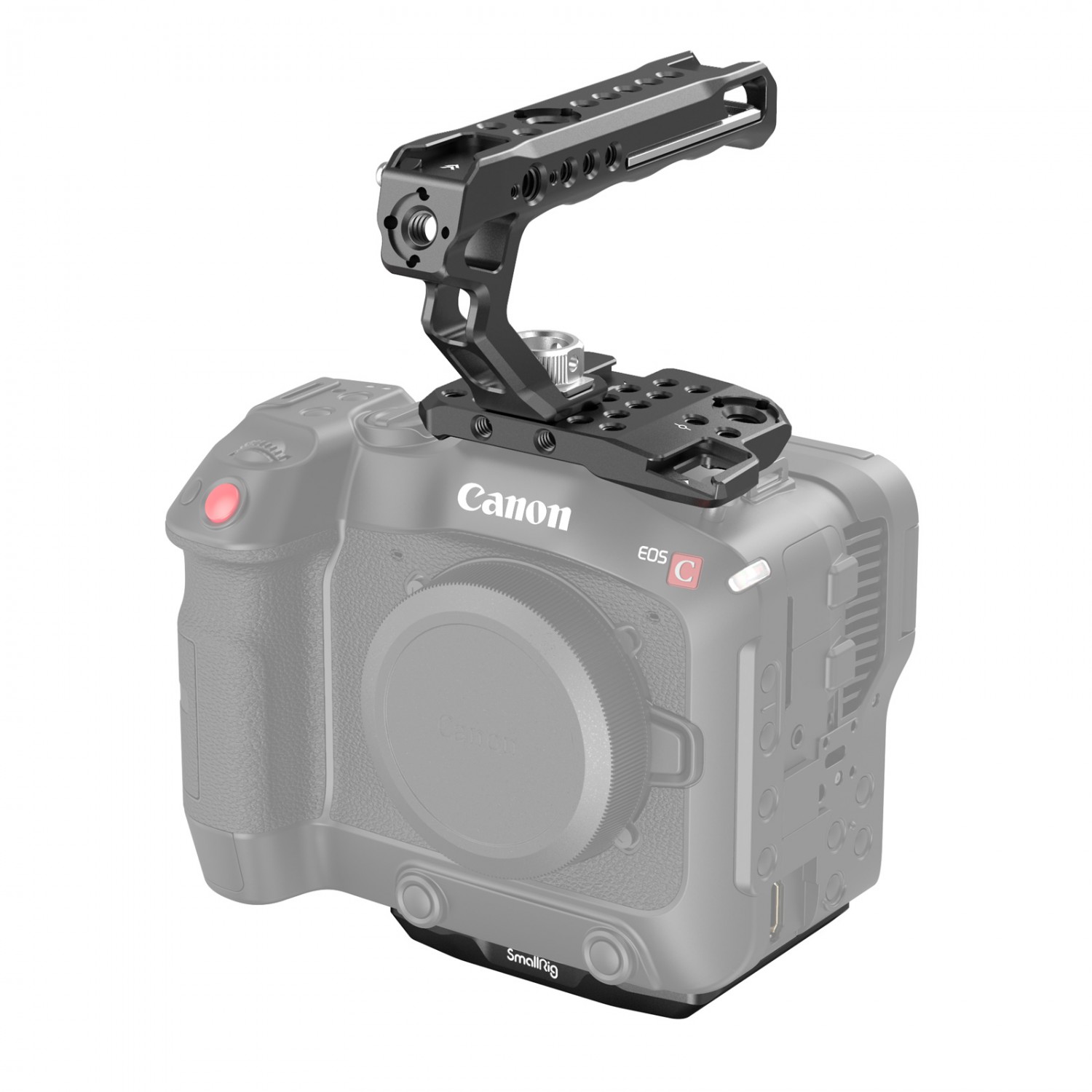

SmallRig Portable Kit for Canon C70 3190

3190 includes: an ARRI locating top handle, a top plate, and a bottom plate. The top plate locks the camera firmly via one 1/4”-20 screw and a locating slot to prevent twists. It is portable and matches the camera perfectly, without frequent assembly and disassembly. It shares the same locking block with the camera and thus supports the original handle. Two built-in cold shoes are available for mounting the microphone and LED light. Multiple 1/4”-20 and 3/8”-16 threaded holes suit such accessories as the monitor, magic arm, and rod clamp. Its ARRI 3/8" -16 locating holes allow attaching SmallRig ARRI Locating Handle 2165 for stabler handheld shooting.

Key Features:
1. Form-fitting kit for Canon C70, compact, lightweight, portable, with integrated design.
2. Features multiple 1/4”-20, 3/8”-16 threaded holes, cold shoes, and ARRI 3/8" -16 locating holes, available for attaching a wide range of accessories.
3. Top handle allows handheld shooting and makes it easy to carry the camera.
4. Top plate shares the same locking part with the camera and supports the original handle.
5. Bottom plate comes with two 1/4”-20 threaded holes for mounting the Arca Swiss Plate of DJI RS2.
6. Built-in flat-head screwdriver and Allen Wrench for easy access.

The bottom plate fixes the camera via two 1/4”-20 screws to prevent twists. Compact and portable, the form-fitting bottom plate features a large rubber pad to protect the camera from scratching as well as multiple 1/4”-20 and 3/8”-16 threaded holes to suit different quick release plates in various scenes. On its bottom comes with two 1/4”-20 threaded holes for mounting the Arca Swiss Plate of DJI RS2 and a built-in flat-head screwdriver for easy access. It is compatible with SmallRig Dual Rod Clamp 1674, when the optical center and the center of rods are 85mm apart, which enables outdoor shooting using the matte box.

Compatibility:
Canon C70

Package Includes:
1 x Handle
1 x Top Plate
1 x Bottom Plate
1 x Allen Wrench

Product Dimensions: 134 x 99 x 69mm
Package Dimensions: 143 x 100 x55 mm
Net Weight: 310g±5g
Package Weight: 360g±5g
Material: Aluminum Alloy
