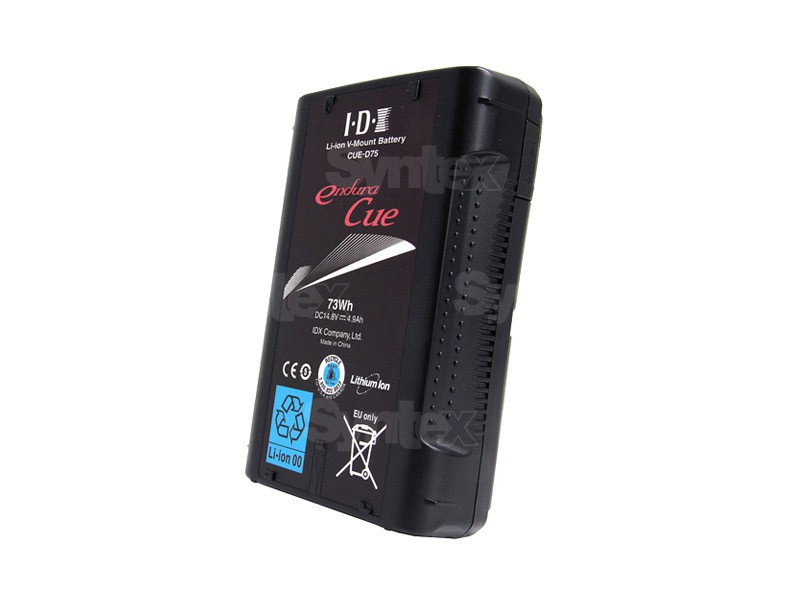

IDX CUE-D75

73Wh Li-ion V-Mount Battery with D-Tap output
CUE-D75 is the smallest of the CUE series and will appeal to users wanting a lightweight battery at an attractive price. Built to Japan’s stringent PSE regulations, the CUE series sets the standard for mechanical and electrical safety. An in-built D-Tap connector gives an additional option for powering ancillaries like LED lights.

TECHNICAL SPECIFICATION

• Battery Capacity: 14.8V, 4.9Ah, 73Wh*
• Max. Output Voltage: 16.8V DC
• Nominal Voltage: 14.8V DC
• Maximum Discharge Current: 4.9A / 59W
• End Voltage: 12V
• Battery Protection:
• Reverse charge
• Over charge (reset)
• Over discharge (reset)
• Over current (reset)
• Temperature protection
• Ambient Temperature:
• To charge:
• 0°C ~ 40°C (10°C ~ 30°C recommended)
• To discharge:
• -20°C ~ 45°C (10°C ~ 40°C recommended)
• To store:
• -20°C ~ 50°C (-20°C ~ 20°C recommended)
• Dimensions: 97(W) x 146(H) x 38.4(D) mm
• Weight: 620g approx.
• *IDX measures capacity of lithium ion
• batteries as a minimum capacity

Čas nabíjania jedného alebo dvoch akumulátorov IDX CUE-D75:
