BON BEM-073
Kód tovaru: BEM-073

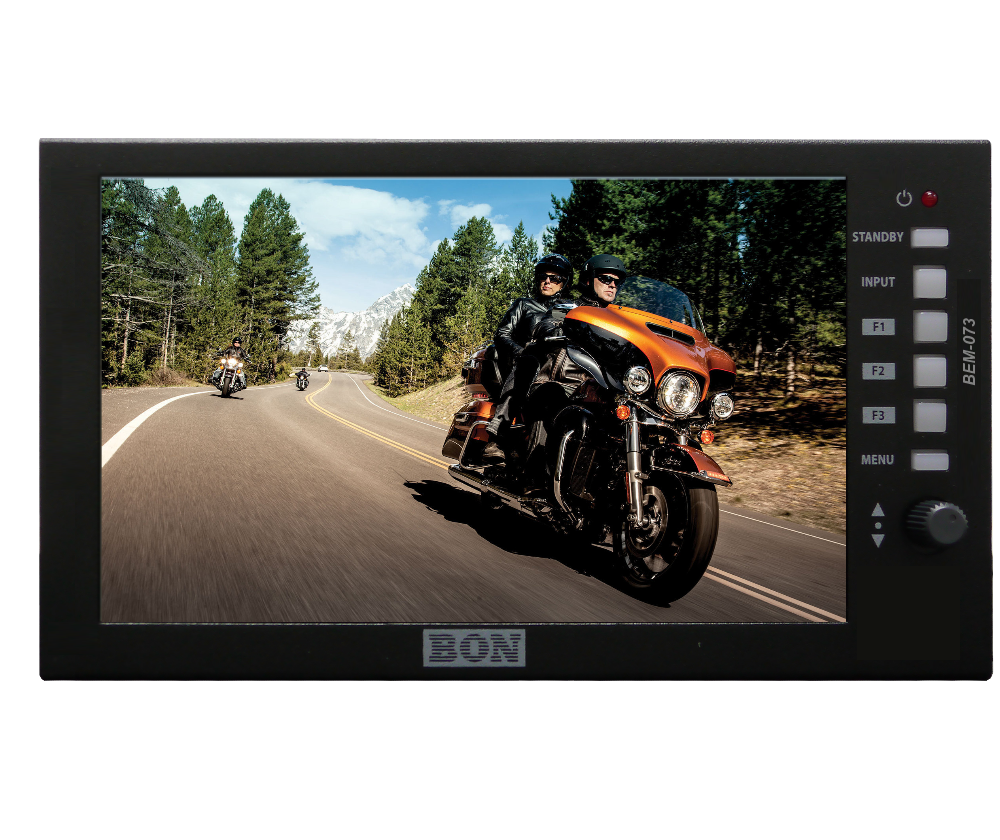

BEM-073 is a cost-effective 7" on-camera monitor. It has color-calibrated screen with selectable color temperatures accepting various input formats. A Sony DV battery mount is built-in to the device to use Sony FP series batteries without any additional purchase.
Zavolajte na 02 455 25 471 kvôli cene
Dostupnosť
Praha 1 ks, Bratislava skladom do 2 dní
Výrobca
Kód tovaru:
BEM-073
Pridať do porovnania
BEM-073
Popis produktu
Popis produktu
BEM-073 is a cost-effective 7" on-camera monitor. It has color-calibrated screen with selectable color temperatures accepting various input formats. A Sony DV battery mount is built-in to the device to use Sony FP series batteries without any additional purchase.
FEATURES
- Color-Calibrated Screen
The screen is calibrated to reproduce precise colors offering selectable color temperatures such as 3200K, 5600K, 6500K, 9300K.

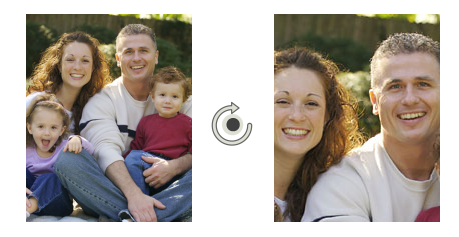

Quick User's Zoom and Focus Assist
To pull focus correctly, it supports a quick user's zoom, pixel to pixel view and focus assist features.

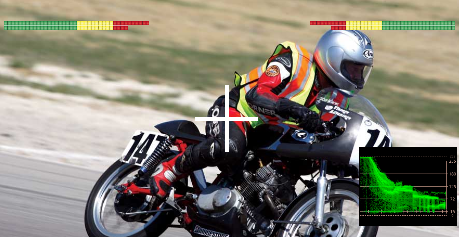

Signal Analysis Features
SDI Waveform and audio level meters are included. Three function buttons in front are user-assignable. Markers and safety area are displayed as user selected in the menu to check the sides and edges of taken pictures.
- 2~16ch Audio Level Meters(SDI)
- Waveform/Vectorscope(SDI)
- Screen Guide Lines
- H/V Delay (SDI)
- Pixel to Pixel
- User-Defined Zoom
- Battery Level Indicator
- Focus Assist(SDI)
| Size | 7" |
| Resolution | 1024 * 600 |
| Pixel Pitch | 0.15*0.15 mm |
| Color | 16.7M(8bit) Colors |
| Viewing Angle(deg) | 150(H), 150(V) |
| Luminance of White | 350 cd/m² |
| Contrast | 700 : 1 |
| Back Light | LED |
| Display Area (H x V) | 153.6 x 90 mm (6.0 x 3.5 inches) |
| Input | |
|---|---|
| 1 x SDI | HD/SD-SDI, 3G/1.485G/270M |
| 1 x HDMI | HDMI1.3 (with HDCP v.1.3), 19pin Female |
| Input Signal Format | |
| SMPTE 425M AB |
1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
1080i (60/59.94/50) |
| 2K, SMPTE 428M | 2048*1080,24p/psf,23.98p/psf |
| SMPTE 274M/292M |
1920*1080i (60, 59.94, 50)
1920*1080p (30, 29.97, 25, 24, 24sF, 23.98, 23.98sF) |
| SMPTE 296M | 1280*720p/60,59.94,50 |
| SMPTE 260M | 1920*1035i/60,59.94 |
| SMPTE 125M/259M | 720*480i/60,59.94, 720*576i/50 |
| ITU R-BT.656 | 576i(50) |
| General | |
| 1x USB | For firmware update |
| Power Requirements | DC 7V/24V |
| Power Consumption | 14W |
| Operating Temperature | 0°C ~ 40°C |
| Operating Humidity | 20% ~ 80% RH |
| Weight | 0.8kg / 1.8 lbs |
| Dimensions(WxHxD) | Main Body : 203.0 x 115.0 x 28.8 mm/ (7.99 x 4.52 x 1.13 inches) |
| In the Box | DC Adapter, Sony FP Battery Plate(Integrated), Sunhood |
| Options | Sunhood, Sony FP Battery |
