ACME GO Plus

Acme Video Solutions GO Plus Portable Live Production Solution is a complete portable live production studio with built-in 17.3" LCD. Mix HD video sources including mixed resolutions and framerates, along with embedded and separate analog audio. Stream output live to the Web in RTMP, WMA, Flash, and other widely supported formats.

Viac informácií

11 398.8 € s DPH 9 499 € bez DPH
-+
Dostupnosť
7-14 dní
Výrobca
Doprava zdarma pri nákupe tohto produktu
Kód tovaru:
ACMEGOPLUS
Pridať do porovnania
Popis produktu

Popis produktu

Acme Video Solutions GO Plus Portable Live Production Solution is a complete portable live production studio with built-in 17.3" LCD. Mix HD video sources including mixed resolutions and framerates, along with embedded and separate analog audio. Stream output live to the Web in RTMP, WMA, Flash, and other widely supported formats.

Built-In Display
A built-in display allows for a compact, portable rig on-site with the ability to add one or two additional LCD displays via DVI, HDMI, or DisplayPort for Multiviewer and other application access.

I/O Cards

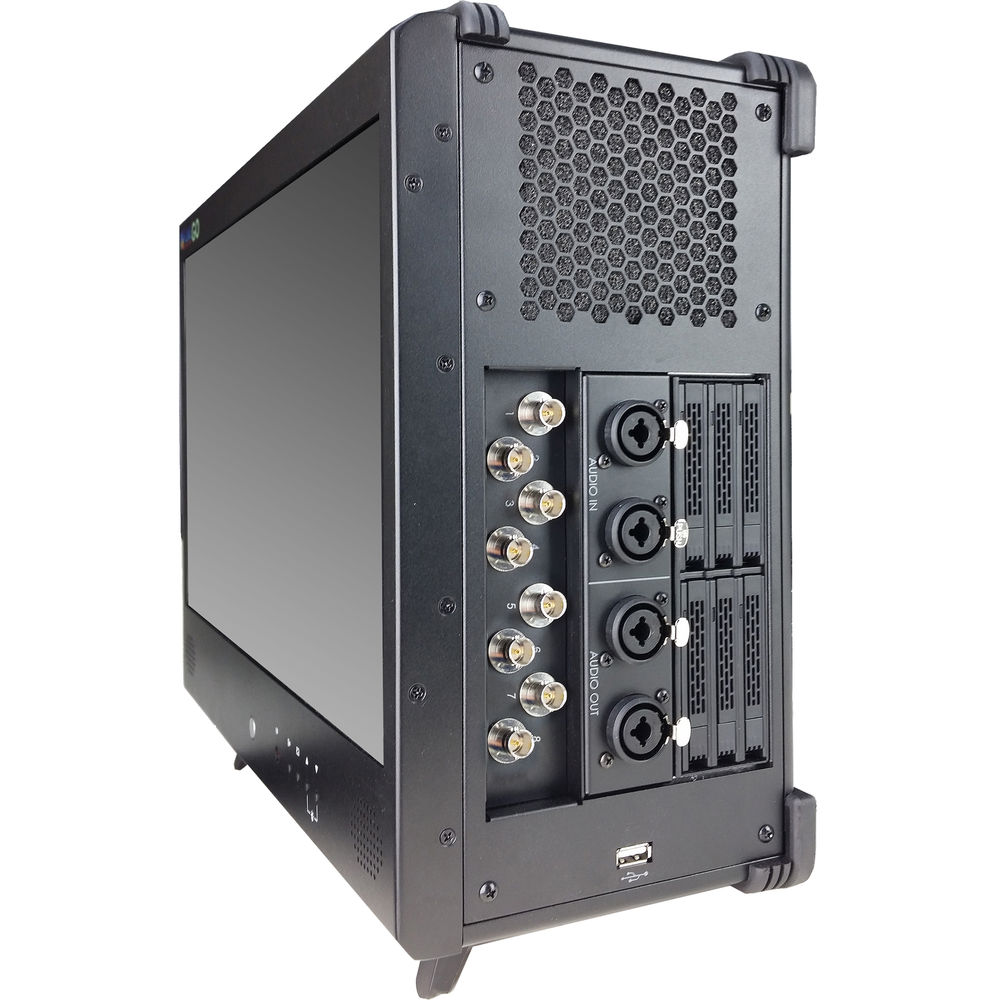

Acme Video Solutions GO Plus is equipped with eight HD-SDI inputs (up to two of which can be used as outputs instead) via an AJA capture card, allowing up to eight live sources. You can also group four inputs together to provide two 4K inputs. When using the card in 4K mode, standard 1080/720 resolutions are unavailable. With up to two SDI outputs, producers can send multiple high-resolution feeds. For example, a "dirty" version complete with overlays for broadcast, and a "clean" version for recording and reuse later. Alternatively, one output can be dedicated to connect a broadcast-grade preview monitor to supplement the GO's built-in screen.

Removable SSD Slots for ISO Recording
No heavy platter-based drives here; the GO Plus gives you four removable SSD storage slots enabling ISO recording of all inputs when fully populated—SSD drives are available separately. When you are finished, simply unplug the drives and easily move your footage to another machine for post-production or archiving.

Media Storage
For storing prerecorded video clips, audio, graphics elements, and more, the GO Plus features two 1TB SSDs. These can also be used for ISO recording from the SDI inputs.

Also included is a 512GB "failover" SSD. This is for emergency use during a live production should the primary drive or Windows installation fail. To use this drive, one of the SSD slots will need to be occupied.

Balanced XLR/TRS Audio I/O
A pair of balanced XLR/TRS combo jack inputs allow the switcher to bring in additional audio from professional sources, on top of up to 16 channels of embedded SDI audio. These inputs are accompanied by two XLR outputs for local monitoring. There is also an unbalanced 3.5mm audio input, and you can add external USB audio interfaces to increase the total number and type of available inputs.

Wi-Fi Connectivity
In addition to the Ethernet port also found on the 4/4 and 4/4K models, the Plus features a USB Wi-Fi adapter for added flexibility.

Parametre

Parametre

Výrobca: ACME
Kategória: Réžie
OBSAH BALENIA

  • ACME VIDEO SOLUTIONS GO Plus Portable Live Production Solution
  • Vinyl Roller Bag with Telescoping Handle and Wheels
  • Logitech Wireless Keyboard and Mouse
  • USB Wi-Fi Adapter and Dongle
  • Shuttle Pro Replay Controller
  • Power Cord






ŠPECIFIKÁCIE


Computer
CPU Intel i7 7700K
GPU Model: Nvidia GTX 1080
RAM: 8 GB
Memory 32 GB DDR4
System Drive Primary: 500 GB SSD
Fallover: 500 GB SSD
Media Storage 2 TB SSD

Display
Size 17.3"
Brightness 300 cd/m²
Contrast Ratio 400:1
Response Time 8 ms

Connectivity
Inputs Video:
8 x HD-SDI on BNC with embedded audio

Audio:
2 x balanced XLR/TRS combo jack
1 x 3.5 mm unbalanced stereo
Outputs Video:
2 x HD-SDI on BNC with up to 16-channel embedded audio

GPU:
1 x HDMI
1 x DisplayPort

Audio:
2 x XLR jack
1 x 3.5 mm unbalanced stereo

Supported Formats
Supported Resolutions 4096 x 2160p: 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
3840 x 2160p: 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
1080p: 23.98, 24, 25, 29.97, 30
1080PsF: 23.98, 24, 25, 29.97, 30
1080i: 25, 29.97, 30
720p: 50, 50.94, 60
525i: 29.97 / 625i 25

General
Dimensions 14.1 x 16.5 x 7" / 35.8 x 41.9 x 17.8 cm
Weight 22 lb / 10 kg
