ACME GO 4

Acme Video Solutions GO 4/4 Portable Live Production Solution is a complete portable live production studio with built-in 17.3" LCD. Mix HD video sources including mixed resolutions and framerates, along with embedded and separate analog audio. Stream output live to the Web in RTMP, WMA, Flash, and other widely supported formats.

Viac informácií

8 398.8 € s DPH 6 999 € bez DPH
-+
Dostupnosť
7-14 dní
Výrobca
Doprava zdarma pri nákupe tohto produktu
Kód tovaru:
ACMEGO44
Pridať do porovnania
Popis produktu

Popis produktu

Acme Video Solutions GO 4/4 Portable Live Production Solution is a complete portable live production studio with built-in 17.3" LCD. Mix HD video sources including mixed resolutions and framerates, along with embedded and separate analog audio. Stream output live to the Web in RTMP, WMA, Flash, and other widely supported formats.

Built-In Display
A built-in display allows for a compact, portable rig on-site with the ability to add one or two additional LCD displays via DVI, HDMI, or DisplayPort for Multiviewer and other application access.

I/O Cards
The Acme GO 4/4K is equipped with four HD-SDI inputs (up to two of which can be used as outputs instead) on an AJA capture card and a single 4K-capable HDMI input on a Magewell capture card allowing up to five live sources. In addition to the 4K capabilities of the HDMI input, you can also group four SDI inputs together to provide another 4K input. Using two of the SDI ports as outputs, producers can send multiple high-resolution feeds. For example, a "dirty" version complete with overlays for broadcast, and a "clean" version for recording and reuse later. Alternatively, one output can be dedicated to connect a broadcast-grade preview monitor to supplement the GO's built-in screen.

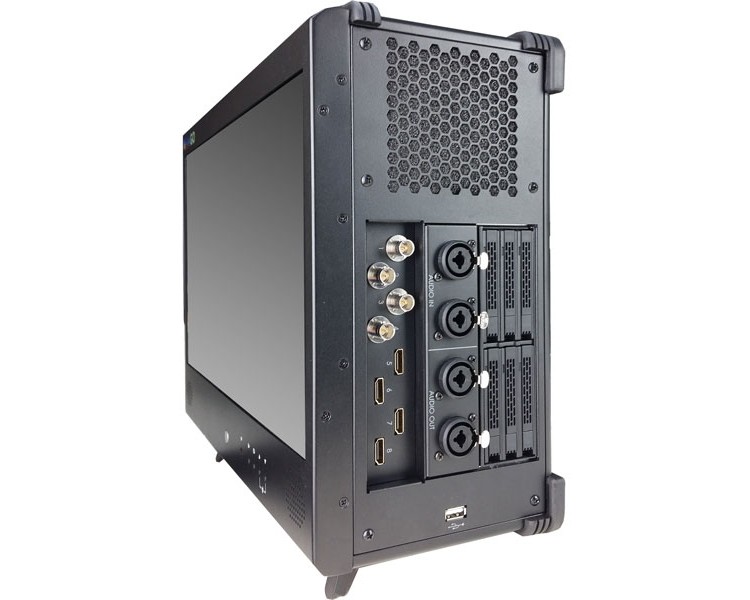

Removable SSD Slots for ISO Recording
No heavy platter-based drives here; the GO 4/4K gives you four removable SSD storage slots enabling ISO recording of all inputs when fully populated—SSD drives are available separately. When you are finished, simply unplug the drives and easily move your footage to another machine for post-production or archiving.

Balanced XLR/TRS Audio I/O
A pair of balanced XLR/TRS combo jack inputs allow the switcher to bring in additional audio from professional sources, on top of up to 16 channels of embedded SDI audio. These inputs are accompanied by two XLR outputs for local monitoring. There is also an unbalanced 3.5mm audio input, and you can add external USB audio interfaces to increase the total number and type of available inputs.

Parametre

Parametre

Výrobca: ACME
Kategória: Réžie
OBSAH BALENIA

  • ACME VIDEO SOLUTIONS GO 4/4 Portable Live Production Solution
  • Vinyl Roller Bag with Telescoping Handle and Wheels
  • Logitech Wireless Keyboard and Mouse
  • Power Cord

ŠPECIFIKÁCIE

Computer
CPU Intel i7 7700K
GPU Model: Nvidia GTX 1060
RAM: 6 GB
Memory 16 GB DDR4
System Drive Primary: 250 GB SSD
Media Storage Not Included

Display
Size 17.3"
Brightness 300 cd/m²
Contrast Ratio 400:1
Response Time 8 ms

Connectivity
Inputs Video:
4 x HD-SDI on BNC with embedded audio
4 x HDMI with embedded audio

Audio:
2 x balanced XLR/TRS combo jack
1 x 3.5 mm unbalanced stereo
Outputs Video:
2 x HD-SDI on BNC with up to 16-channel embedded audio

GPU:
1 x HDMI
1 x DisplayPort

Audio:
2 x XLR jack
1 x 3.5 mm unbalanced stereo

Supported Formats
Supported Resolutions 4096 x 2160p: 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
3840 x 2160p: 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
1080p: 23.98, 24, 25, 29.97, 30
1080PsF: 23.98, 24, 25, 29.97, 30
1080i: 25, 29.97, 30
720p: 50, 50.94, 60
525i: 29.97 / 625i 25

General
Dimensions 14.1 x 16.5 x 7" / 35.8 x 41.9 x 17.8 cm
Weight 22 lb / 10 kg
